Eutonomy euFIX D212 DIN Rail Enclosure for FIBARO Dimmer 2

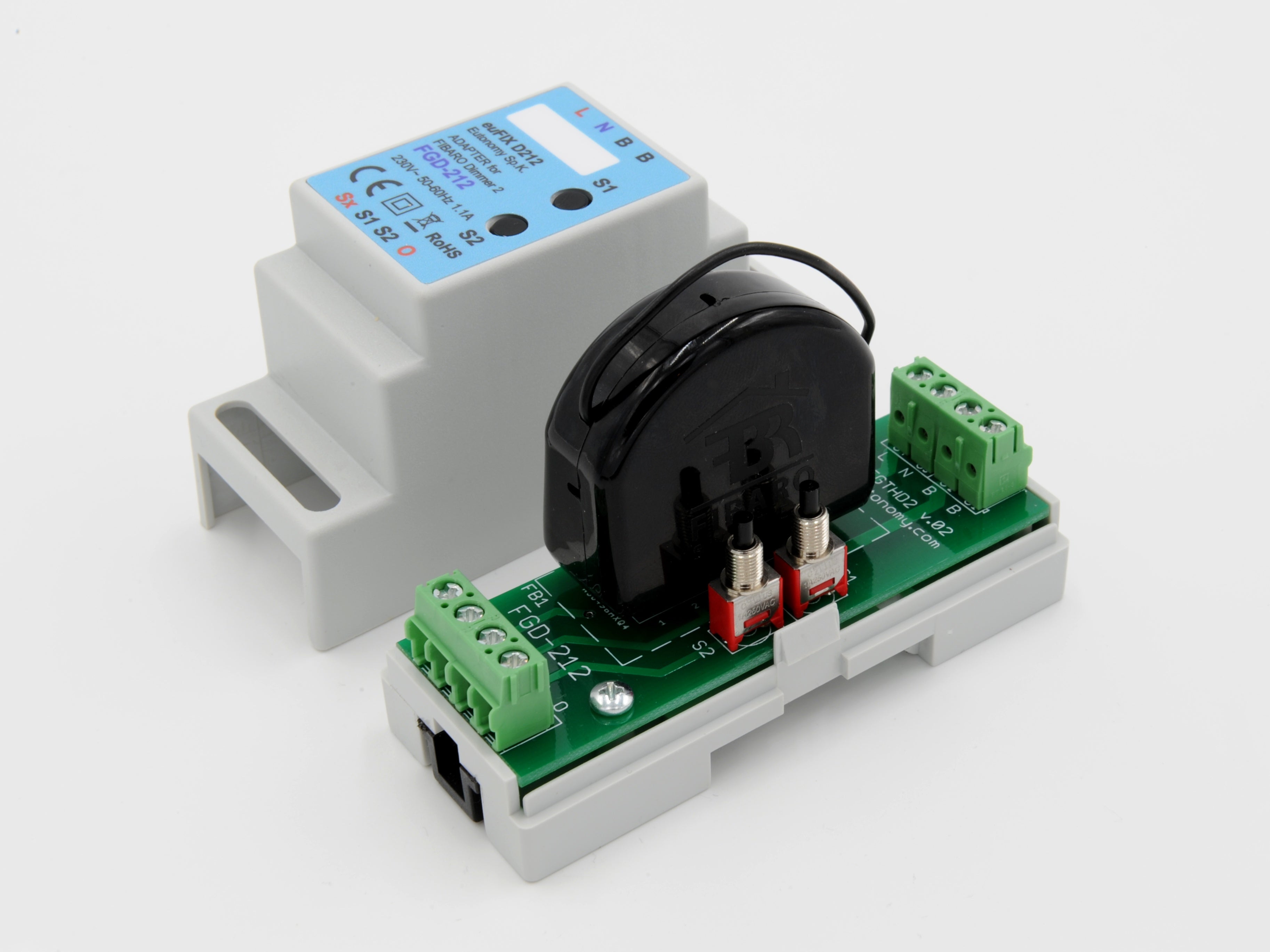

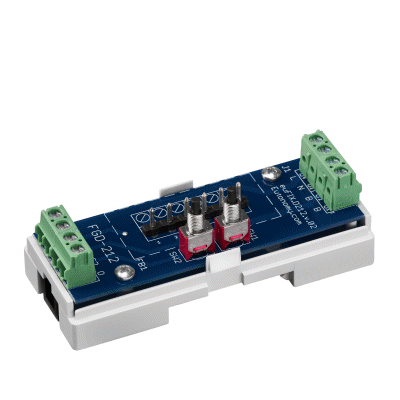

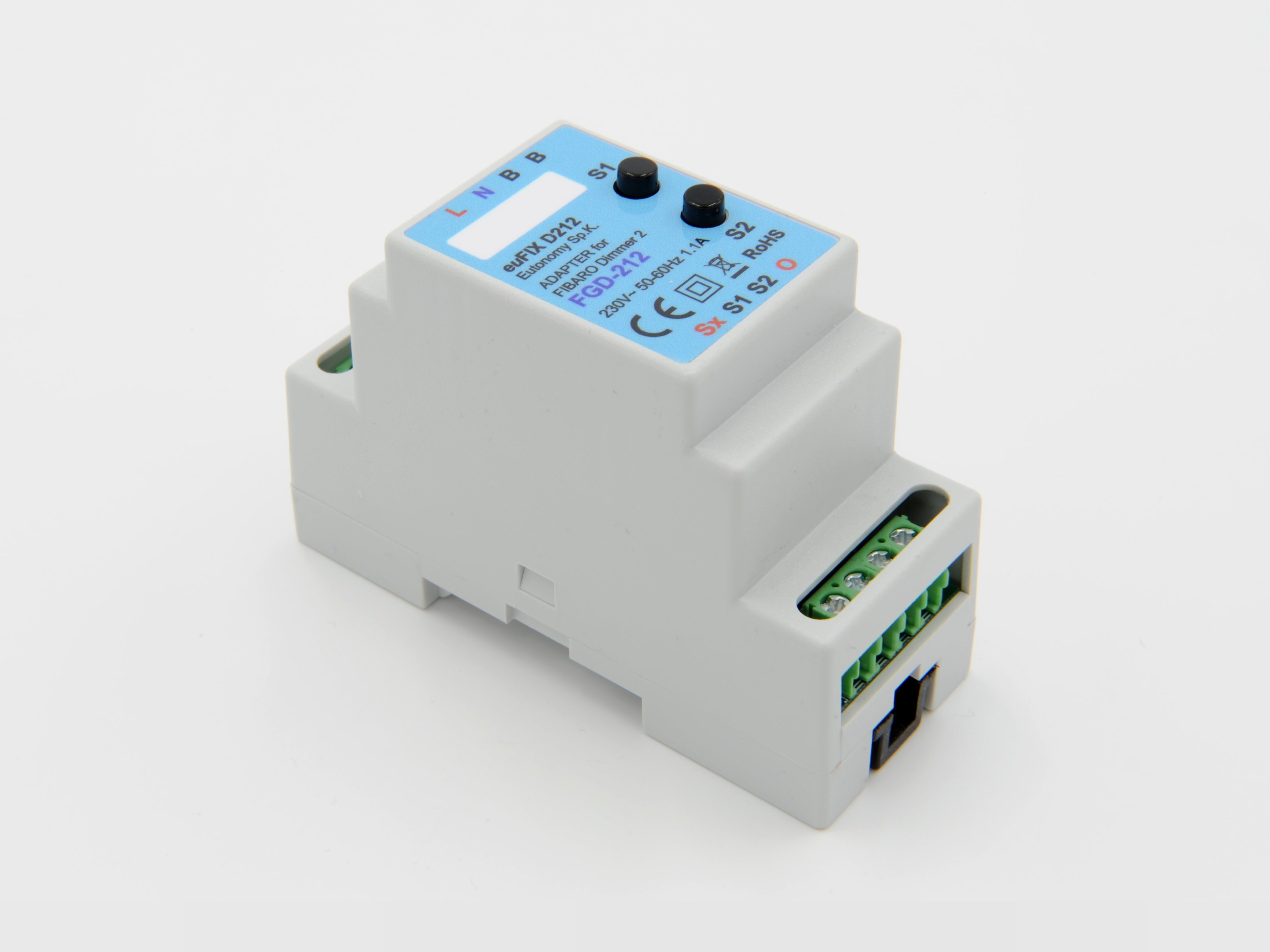

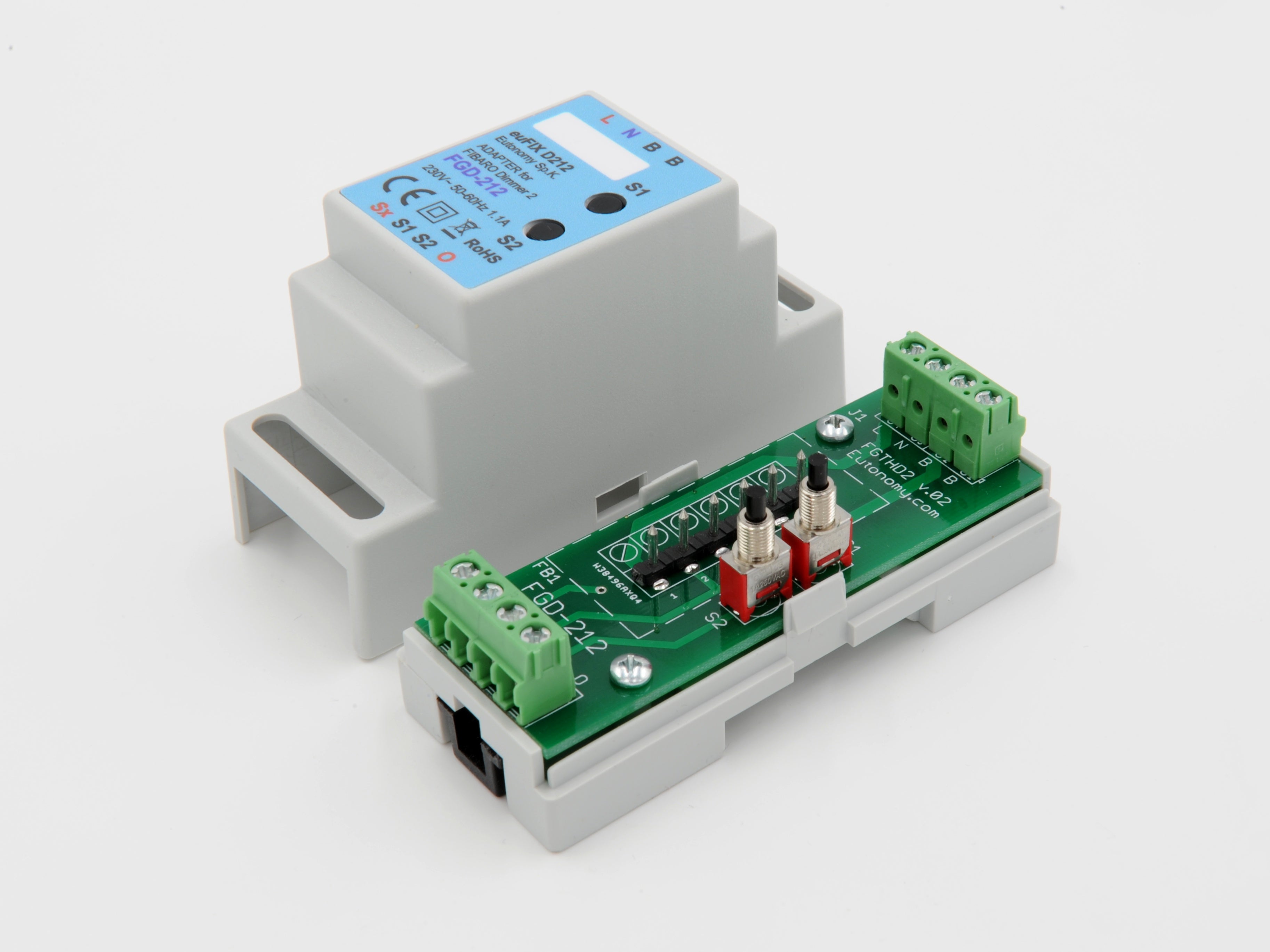

The euFIX D212 Adapter is used to install the Fibaro® Dimmer FGD-212 module on DIN TH35 type rail in the electrical switchboard. The euFIX D212 Adapter consists of the case and the base board, where the FGD-212 module is mounted. The dimensions of the case are appropriate for a standard DIN TH35 type rail. The base board contains a set of screw terminals, where all the wires (power supply, input and output signals, control push-buttons) can be safely connected. An optional Fibaro® Bypass FGB-002 module can also be connected to the adapter's screw terminals. The front panel of the case contains two diagnostics micro-push-buttons S1 & S2, which can be used to control the module, to register the module within the Z-Wave system or to remove it from the system without opening the adapter's case.

Please note that the Fibaro® FGD-212 module is not included and needs to be purchased separately.

Technical

• Supply voltage: 230V AC +/-10%, 50–60Hz
• Load power: max 250 W
• Dimensions: 34.8 x 87.3 x 64.7 mm
• Width in TE units: 2 TE modules conductor wires cross
  section:
  • max. 2.5 mm2
  • Maximum length of wires connected to Sx, S1, S2 inputs:
    10 m (construction limit of the Fibaro module)
• Operating temperature: 0 °C to +35 °C
• Relative humidity: ≤90 %, no condensation

Manual

Click here for Eutonomy euFIX DIN Rail Enclosure for FIBARO Dimmer 2 manual
