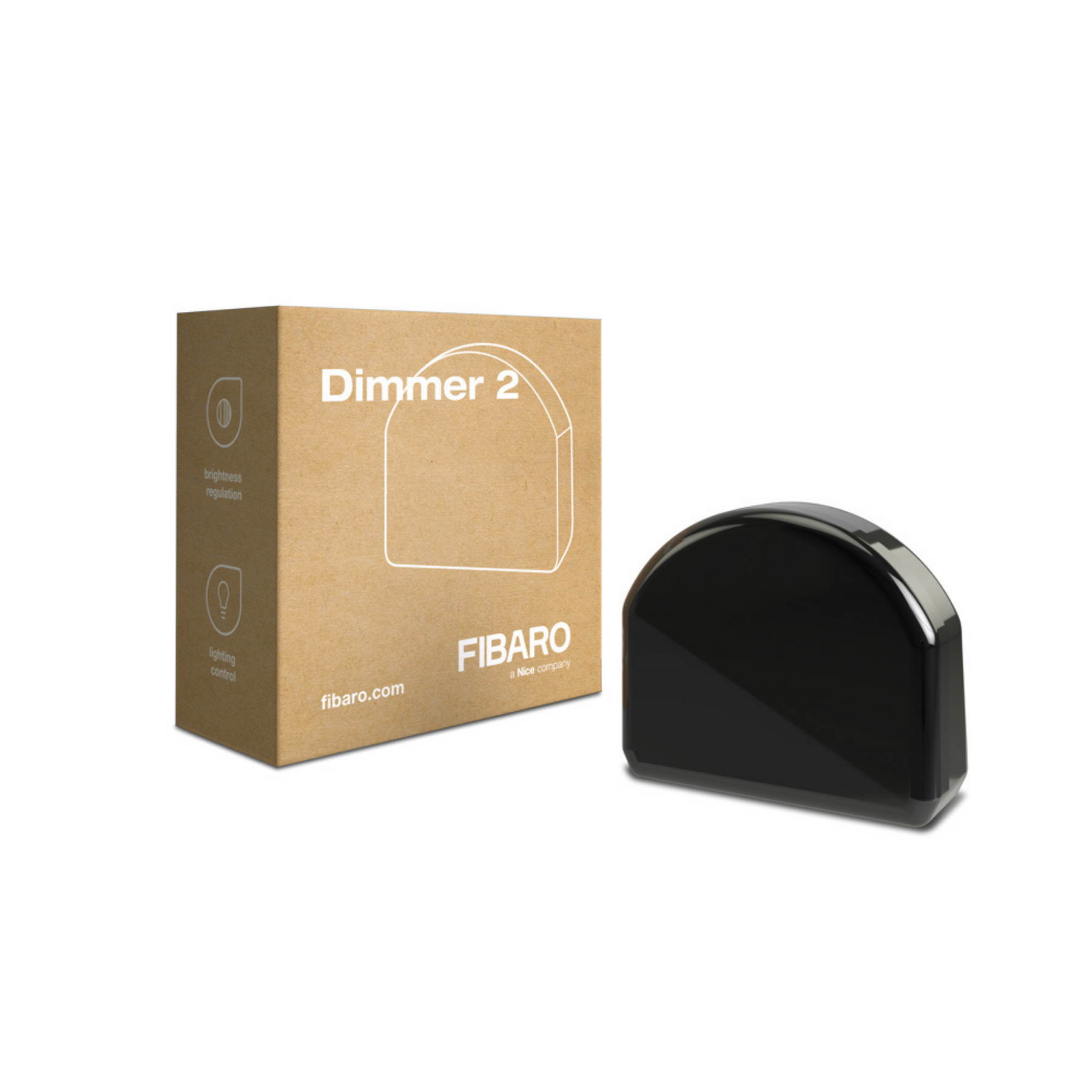

Remotely controlled light dimming module FIBARO Dimmer 2 is designed to work with various types of light sources. It may be connected to two-wire or three-wire configuration so it can operate with or without neutral lead. FIBARO Dimmer 2 can switch or dim connected light source either through radio waves or through the wall switch connected directly to it.
The FIBARO Dimmer 2 is equipped with an algorithm of smart light source detection which makes configuration easier and ensures high compatibility of the device. It may be used as a switch with non-dimmable light sources.
If you're looking for the ideal bulbs for use with the FIBARO Dimmer 2 module then follow this link to our partner, Ultra LEDs. They offer the most comprehensive range of bulbs that are fully compatible with all our lighting controllers.
Features
- Compatible with any Z-Wave or Z-Wave+ Controller
- Advanced microprocessor control
- Implemented algorithm of smart light source detection
- Auto-adjustment of the appropriate control mode to connected load
- Active power and energy metering functionality
- Soft start function
- Memory of the last lighting level settings
- Works with various types of switches – momentary, toggle, three-way, etc.
- Active element: semiconductor electronic switch
-
To be installed in wall switch boxes of dimensions allowing for installation, conforming to provisions of applicable regulations
Specifications
| Power supply: | 100-240 V~ 50/60 Hz |
| Power consumption: | < 1.3W |
| Operational temperature: | 0-35°C |
| Dimensions (L x W x H): | 42.5 x 38.25 x 20.3 mm |
| For installation in boxes: | Ø ≥ 50mm |
| Operational current: | 0.25-1.1A |
| Device temperature protection: | 105°C |
| Active element: | semiconductor electronic switch ε |
| Device control: | remotely – radio waves directly – external switch |
| Radio protocol: | Z-Wave |
| Radio signal power: | up to 1mW |
| Radio frequency: | 868.4, 869.85 MHz EU; 908.4, 916.0 MHz US; 921.4, 919.8 MHz ANZ; 869.0 MHz RU; 919.8 MHz HK; 868.1 MHz MY; 865.2 MHz IN; 915.0 Mhz – 917.0 Mhz IL; 922.0 MHz – 926.0 MHz JP; 868.4 MHz CN, KR; |
| Radio transmit power: | up to 6 dBm (EIRP) |
| Range: | up to 50 m outdoors up to 30 m indoors (depending on building materials) |
| Comply with EU directives: | RED 2014/53/EU RoHS 2011/65/EU |
