FIBARO

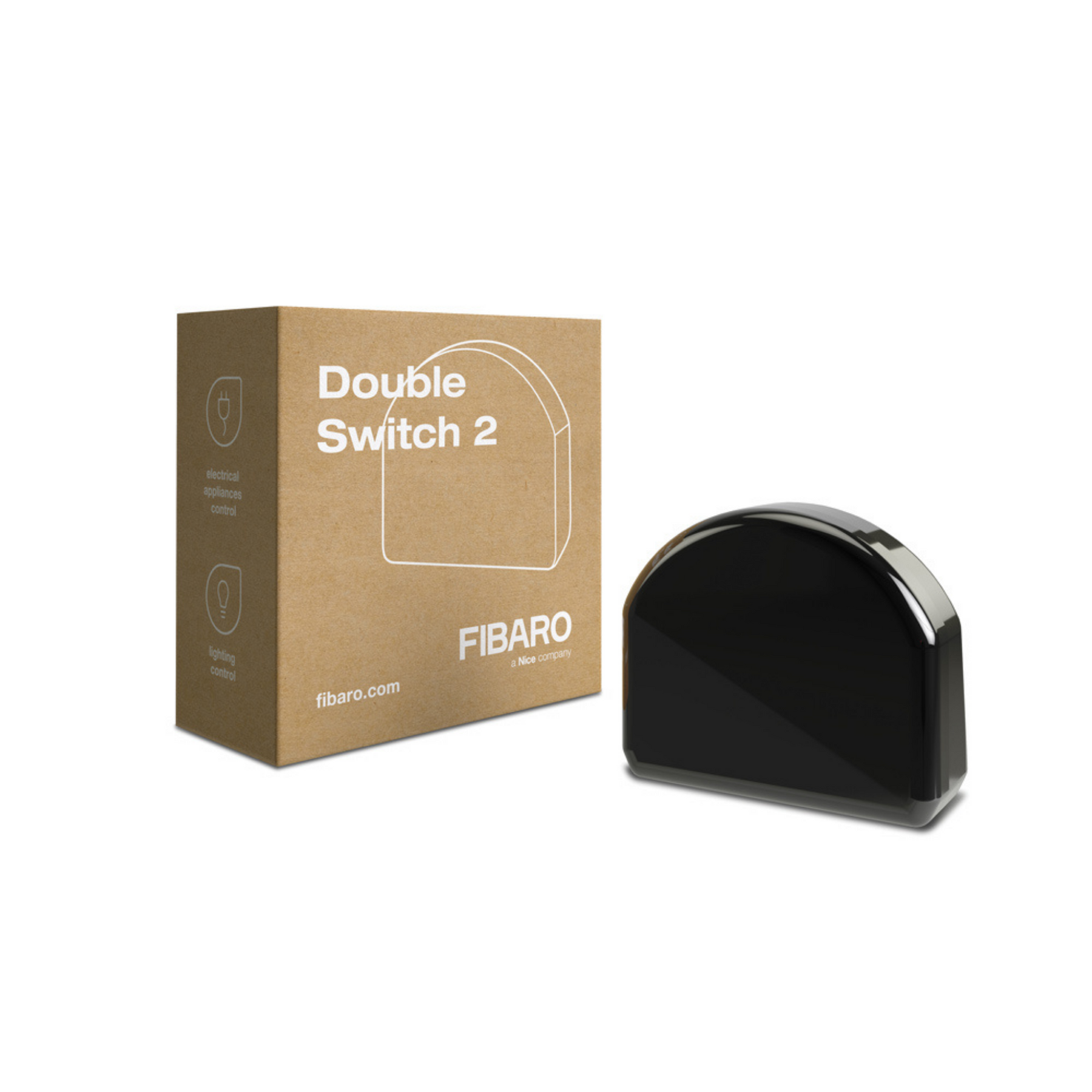

FIBARO Double Switch 2
FIBARO Double Switch 2
Whitehills
15 Olympic Court
Blackpool FY4 5GU
United Kingdom
Choose options
Please note due to a change in branding, your order may be fulfilled with Nice branded products. Please be assured they are identical to FIBARO.
FIBARO Double Switch 2 is designed to be installed in standard wall switch boxes or anywhere else where it is necessary to control electric devices. FIBARO Double Switch 2 allows to control two connected devices either via the Z-Wave+ network or via a switch connected directly to it and is equipped with active power and energy consumption metering functionality.
Features
-
Compatible with any Z-Wave or Z-Wave+ Controller
-
Supports protected mode (Z-Wave network security mode) with AES-128 encryption
-
Advanced microprocessor control
-
Active power and energy metering functionality
-
Works with various types of switches – momentary, toggle
-
three-way, etc
-
To be installed in wall switch boxes of dimensions allowing for installation, conforming to provisions of applicable regulations
Specifications
| Power supply: | 100-240V~ 50/60 Hz |
| Rated load current: | Double Switch 2 (FGS-223): IEC standards: 6.5A per channel, 10A overall UL standards (resistive loads): 6A per channel, 9.5A overall UL standards (incandescent loads): 3A per channel |
| Operating temperature: | 0-35°C |
| For installation in boxes: | Ø ≥ 50mm, depth ≥ 60mm |
| Radio protocol: | Z-Wave (500 series chip) |
| Radio signal power: | up to 1mW |
| Radio frequency: | 868.4 or 869.8 MHz EU; 908.4, 908.42 or 916.0 MHz US; 921.4 or 919.8 MHz ANZ; 869.0 MHz RU; |
| Radio transmit power: | up to 6 dBm (EIRP) |
| Range: | up to 50m outdoors up to 40m indoors (depending on terrain and building structure) |
| Comply with EU directives: | RED 2014/53/EU RoHS 2011/65/EU |
| Dimensions (L x W x H): | 42.5 x 38.25 x 20.3 mm |
Manuals
