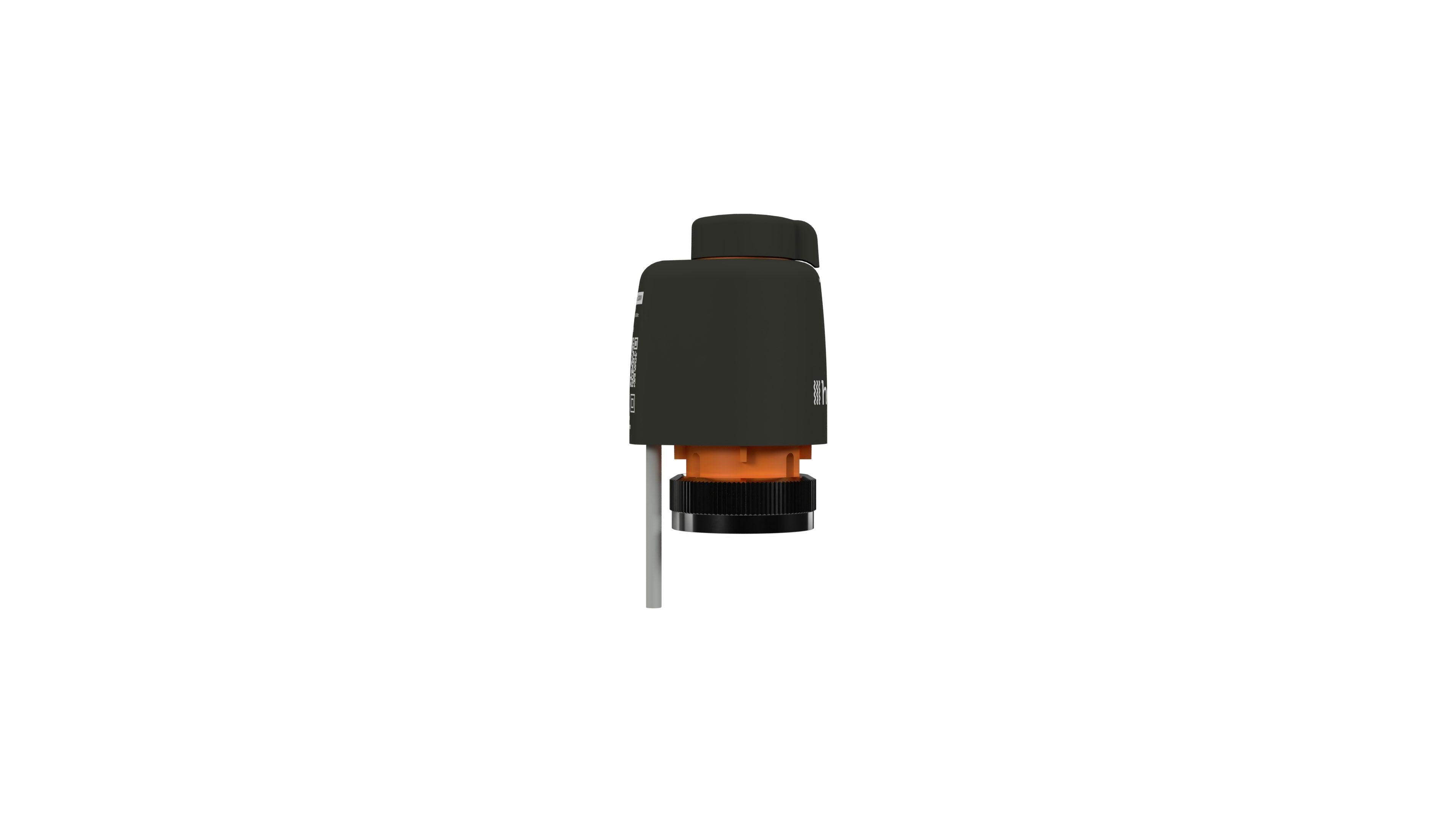

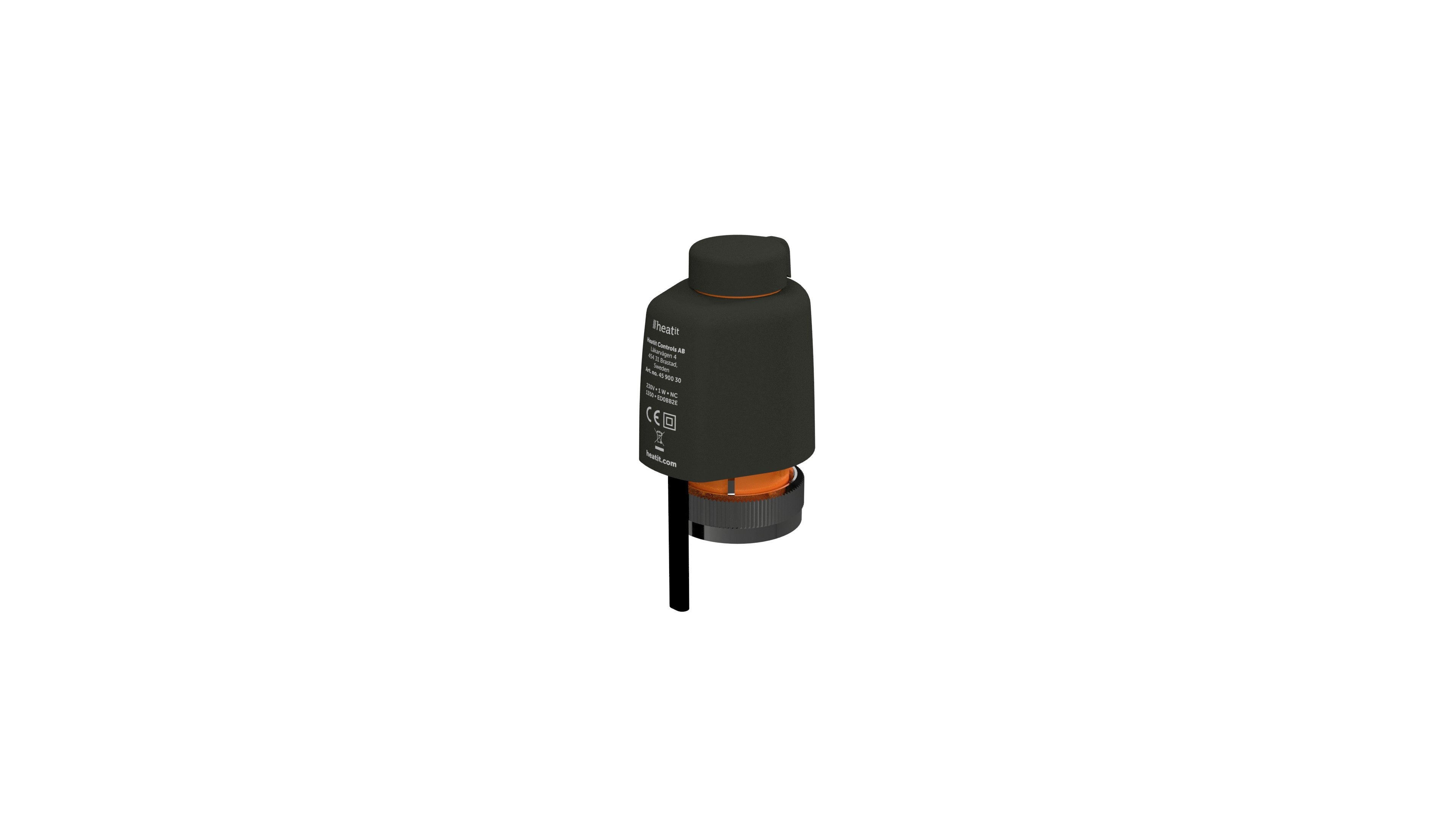

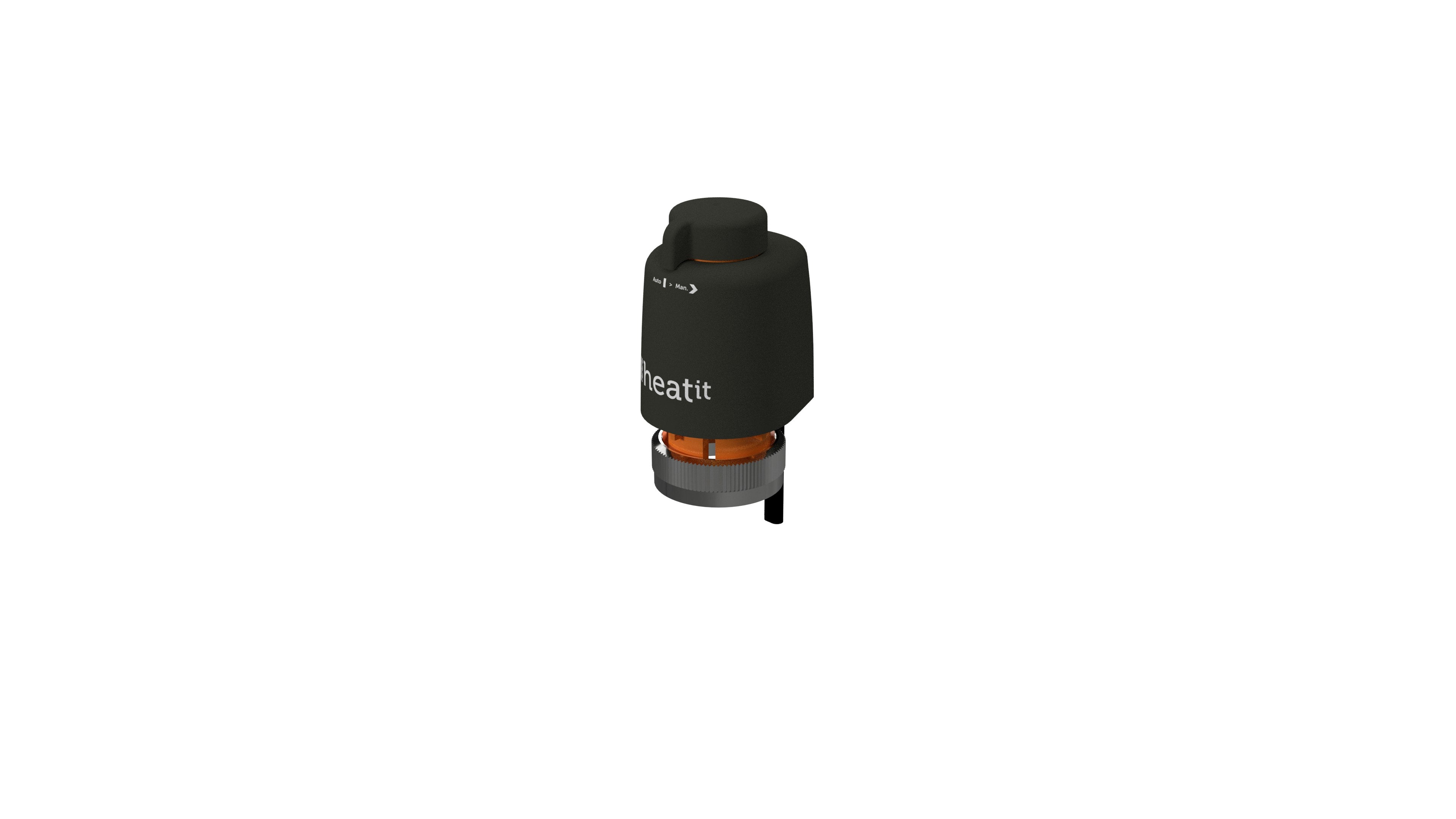

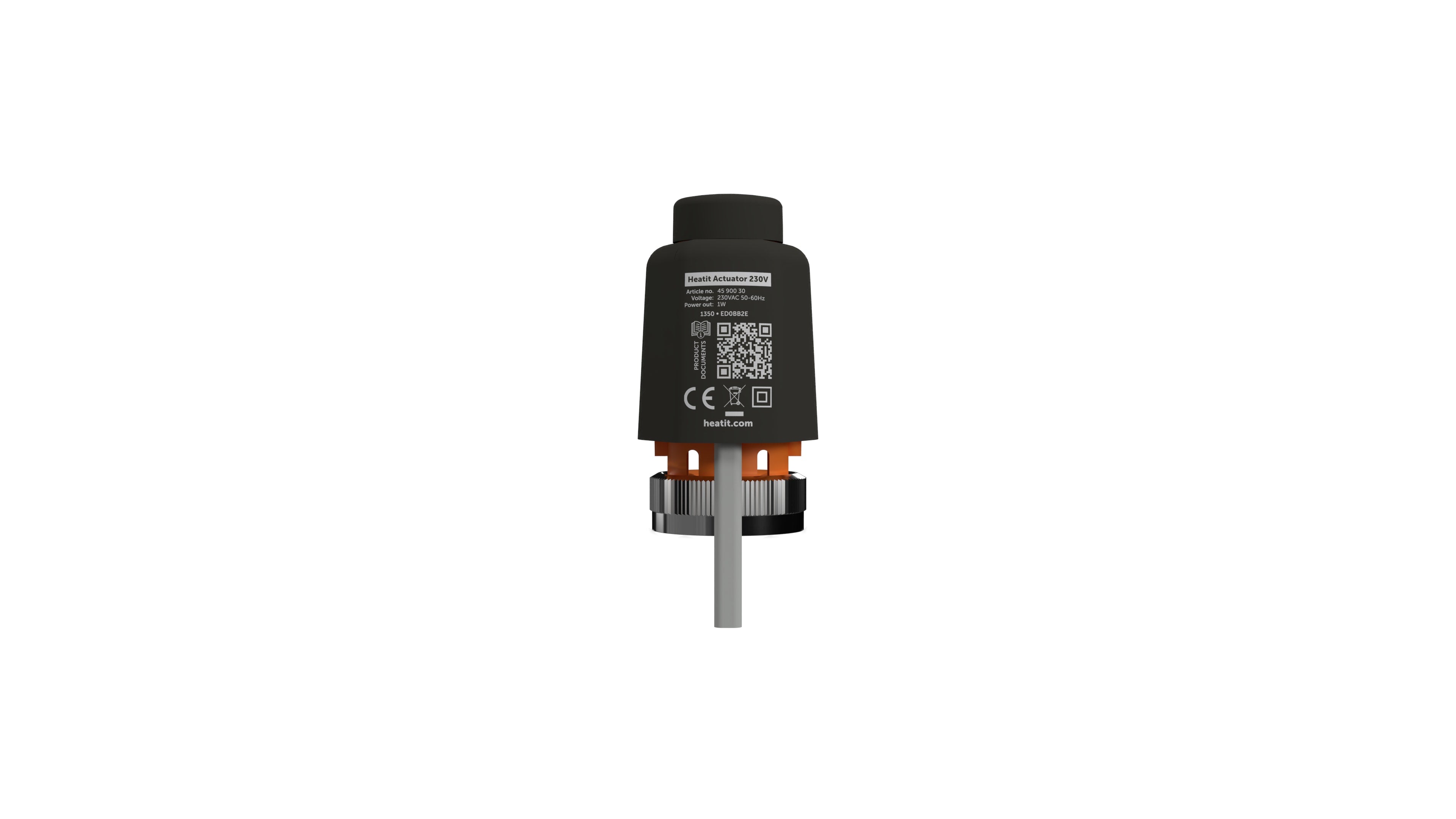

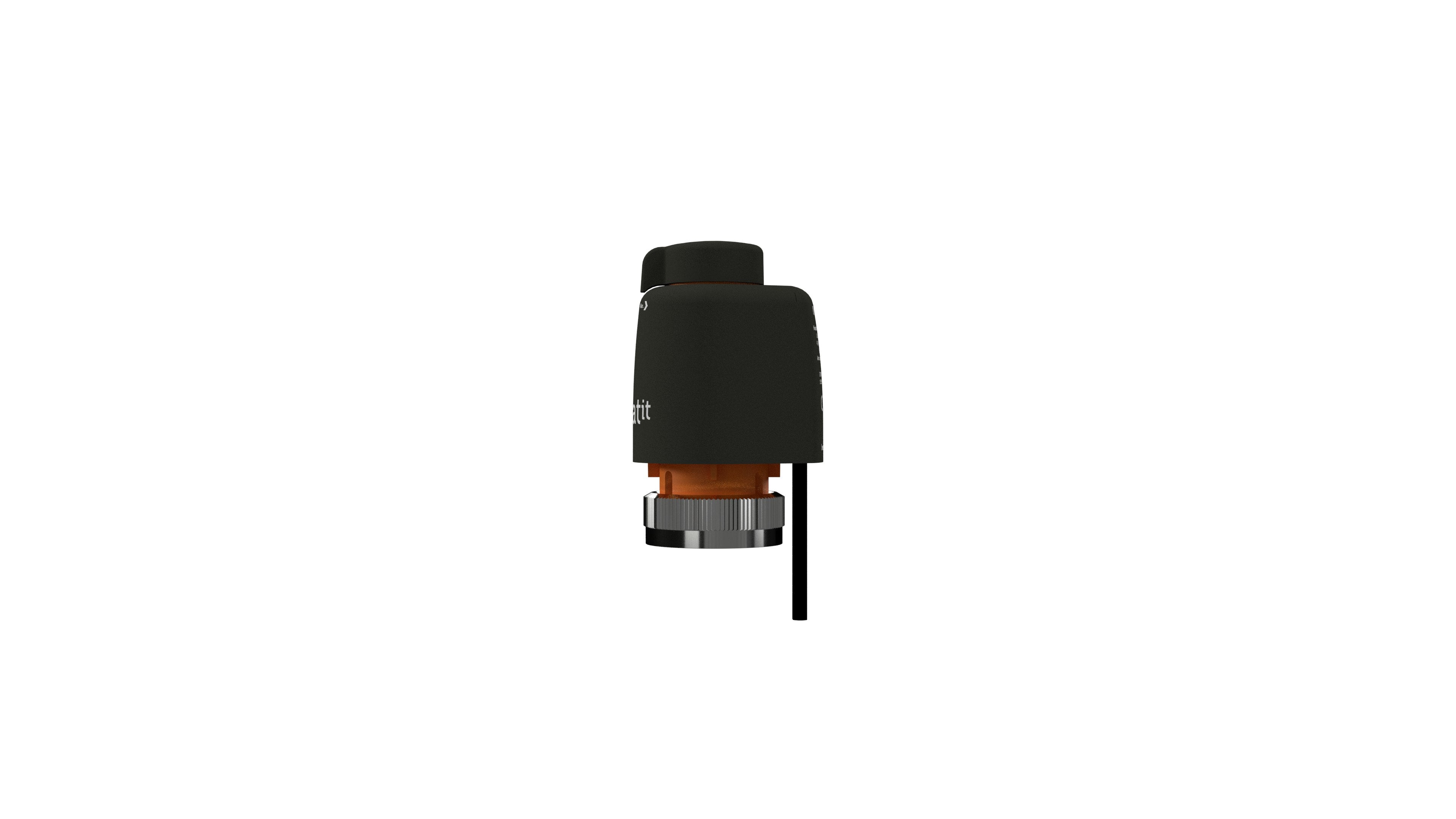

Heatit Actuator 230VAC

Compact electrothermal actuator for controlling waterbased heating systems. Can be regulated manually or on a signal from a thermostat or external regulator.

• Installation type - Union nut.

• Operating direction - NC Normally closed.

• 360° - Overhead installation.

• Space saving - Only 38mm overall width.

• Manual opening function - By turning the top the actuator, it can be manually controlled.

• Actuating force - 100N.


Features

• Electrothermal actuator (telestat) for energy-efficient control of waterbased heating and cooling systems.

• Energy-efficient thanks to a low power consumption.

• Simple installation without tool.

• M 30x1.5

• Compact design, low dimensions.

• Open/Close indicator.

• NC - Normally closed.

• Silent.

• High functional reliability and long life.

• Valve test.

• Manual opening function.

• 360° installation position.

• Durable and reliable high-quality materials.

• Made in EU.

• Tested quality confirmed by the TÜV Rheinland according to the IEC 60730-2-14.


Technical

• Voltage:230V 50/60Hz, 230VAC 50/60Hz

• Own power usage (watt):0

• Max installation temperature (°C):60

• Min installation temperature (°C):0

• Protection grade (IP):IP54

• Declarations:CE declaration, CE

• Own power usage (Volt):1

• Product height (mm):75

• Product length (mm):45

• Product weight (gram):113

• Product width (mm):38


Manuals

Heatit Actuator 230VAC Data Sheet
