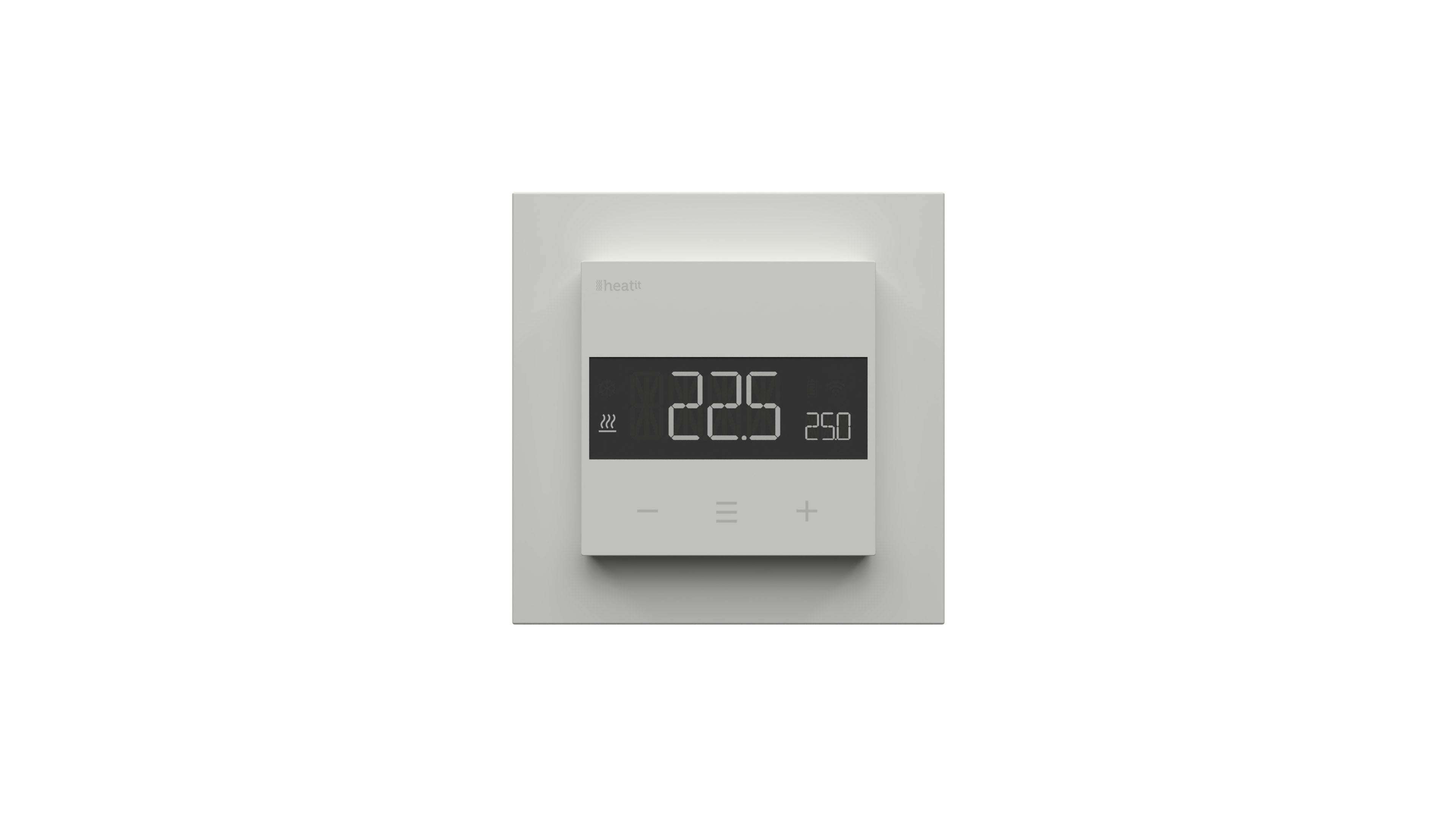

Heatit WiFi6 Thermostat White RAL 9003 3600W 16A

Heatit WiFi6 is an electronic thermostat designed for electrical heating and water based heating control. The thermostat can be controlled via Wi-Fi or Bluetooth (BLE) using the "MyHeatit" app or with the buttons on the front of the thermostat. The thermostat features a user-friendly interface.

Heatit WiFi6 has 3 modes: Heat - Cool and Eco.

The thermostat fits in standard European junction boxes and may be used with most System 55 frames. It has a sturdy metal frame for secure fastening in the junction box. The thermostat has a built-in room temperature sensor. Two additional external temperature sensors may also be connected.

The installer configures the system via Wi-Fi. If Wi-Fi is not available, the system can be configured via Bluetooth. After the system is set up, the installer can add the property to the customer. The customer can then add the system to their local Wi-Fi network.

All our new Heatit products with Wi-Fi support will be supported through our app; "MyHeatit". In the "MyHeatit" App, you can create your own profiles such as "Home – Away – Night – Holiday" and thus control, monitor and organize all the connected devices, or control them via weekly schedule.

When used with Wi-Fi, the thermostat can communicate over a local API, allowing the user to integrate it with a local gateway, server, controller that offers such a service, without the need to connect it to the cloud. The device also supports Amazon Alexa and Google Home (support for Amazon Alexa and Google Home is pending).

Heatit WiFi6 features active power metering, providing real-time information about your power consumption. It also allows you to manually set the power metering value when connected to a contactor

The device is equipped with ZeroX™ technology, which ensures the relay switches at 0V when turning on and off. This technology significantly extends the thermostat's lifespan.

The thermostat can withstand a resistive load of up to 16A/3600W at 230VAC. For loads above 13A, we recommend using a contactor.
The thermostat is designed for resistive loads. When using large resistive, capacitive, or inductive loads, a contactor should be used

Features:

• Wi-Fi/BLE thermostat
• Internal room sensor
• External room sensor (wired by cable)
• Floor sensor
• Power regulator
• Temperature limiter
• 3 modes: Heat - Cool - Eco
• Hysteresis/PWM
• Temperature calibration
• Open window detection
• ZeroX™ detection
• Relay status icon
• Adjustable display brightness
• Single pole switch
• Lock mode/child lock
• Google Home, Amazone Alexa and open API (pending)
• Weekly schedule in app
• Profiles; Home - Away - Night - Holiday
• Active power metering
• Firmware update (OTA)

Technical:

• Voltage:230VAC 50Hz
• Max load (Watt - resistive load):3600
• Own power usage (watt):2
• Effect regulator:Timed cycle 0-30 minutes
• Hysteresis:0,3 to 3,0 (default hysteresis 0,5)
• Switch type:One-pole switch
• Compatible NTC-sensors (Ω @ 25°C):10, 12, 15, 22, 33, 47, 6.8, 100
• Protection grade (IP):IP21
• Alternate IoT-communication procols:Bluetooth® low energy, WiFi (802.11 b/g/n) 2,4GHz
• Ambient humidity (RH non-condensing %):10-85
• Ambient temperature range in storage (°C):-30-70
• Total gross effect (W):3600
• Declarations:RoHS, Reach
• International standard:Nemko, CE
• Signal range radio frequency (max no. meters):30
• Max connection dimension (mm²):2,5
• Push buttons:3
