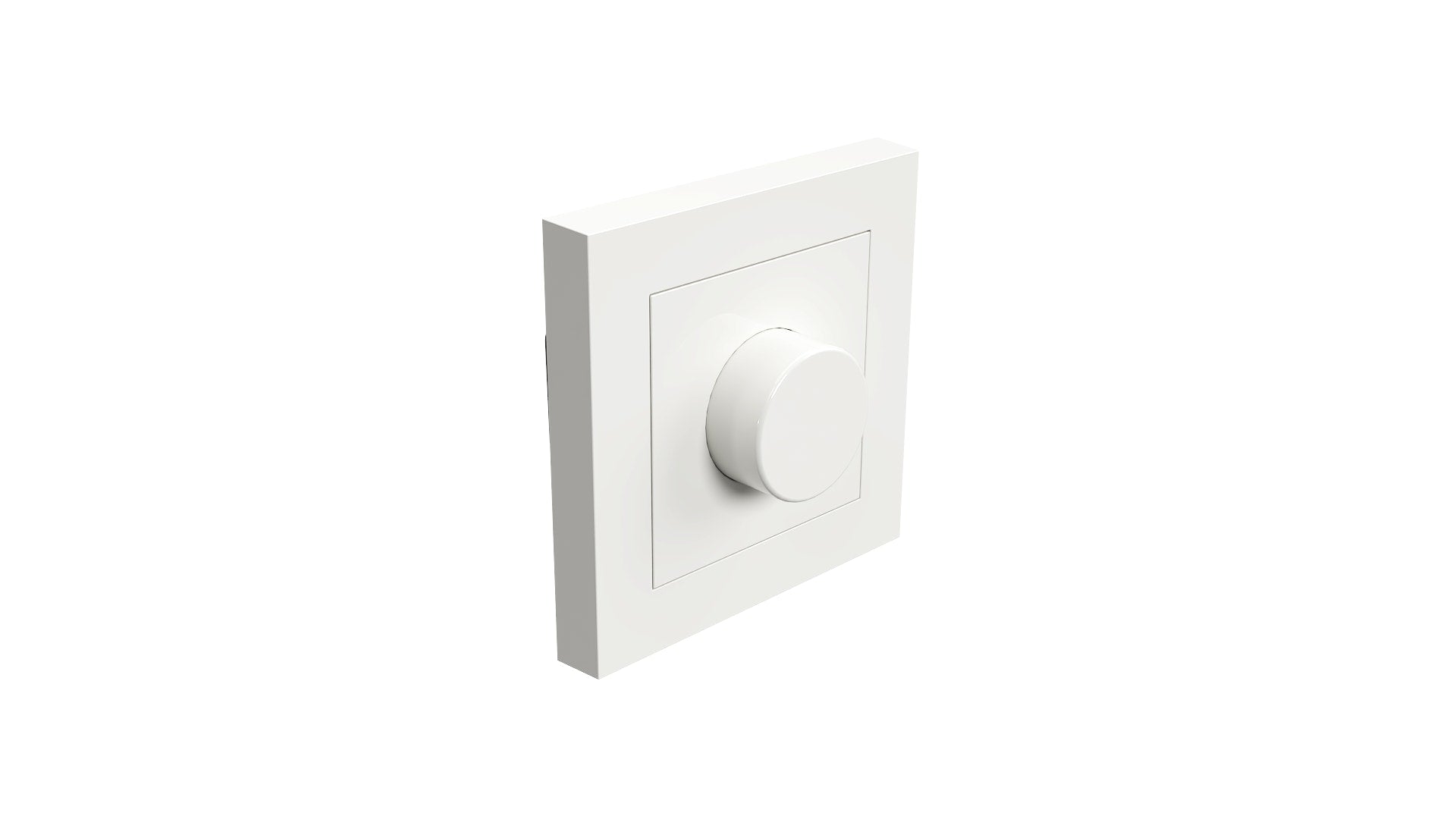

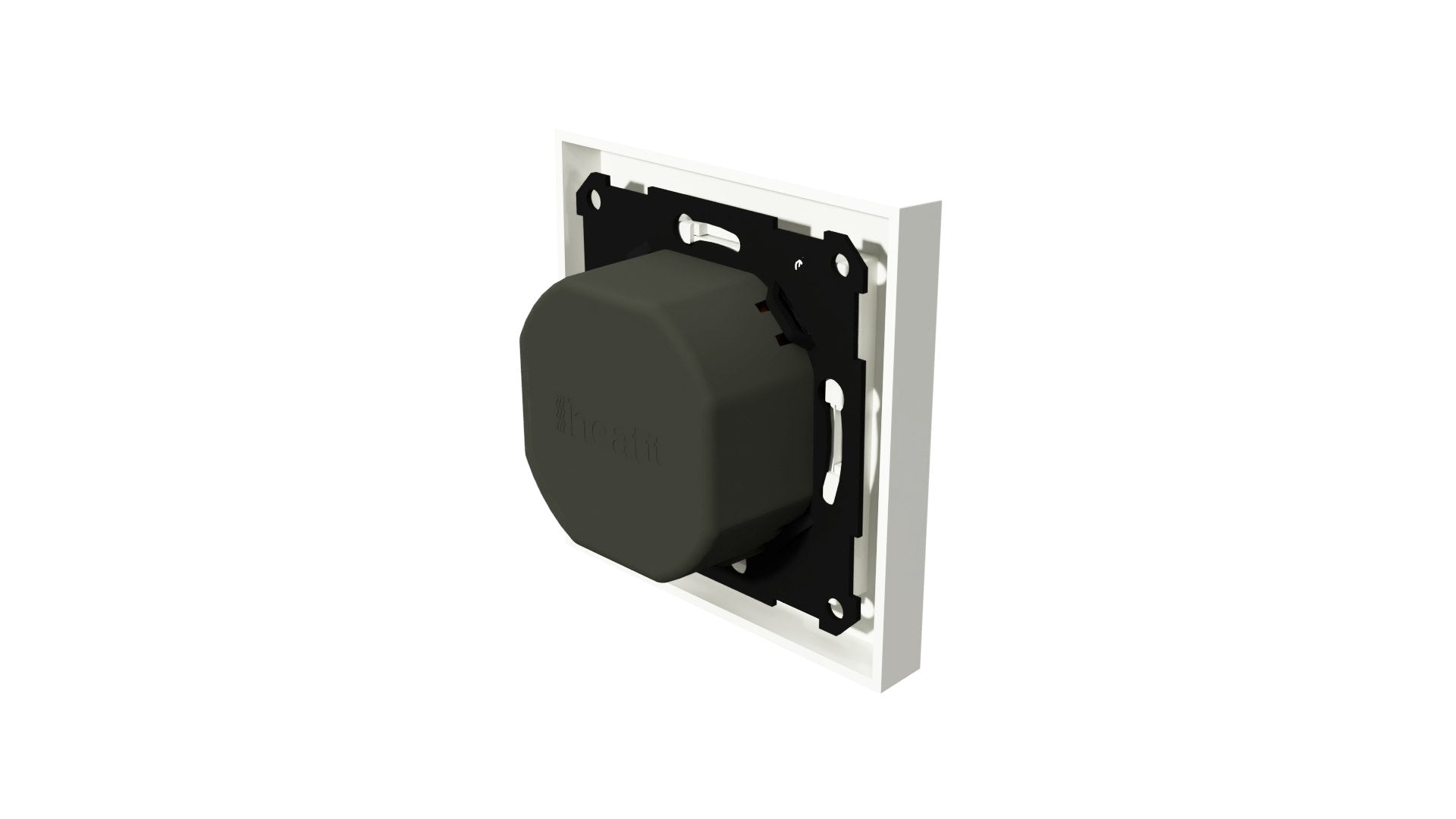

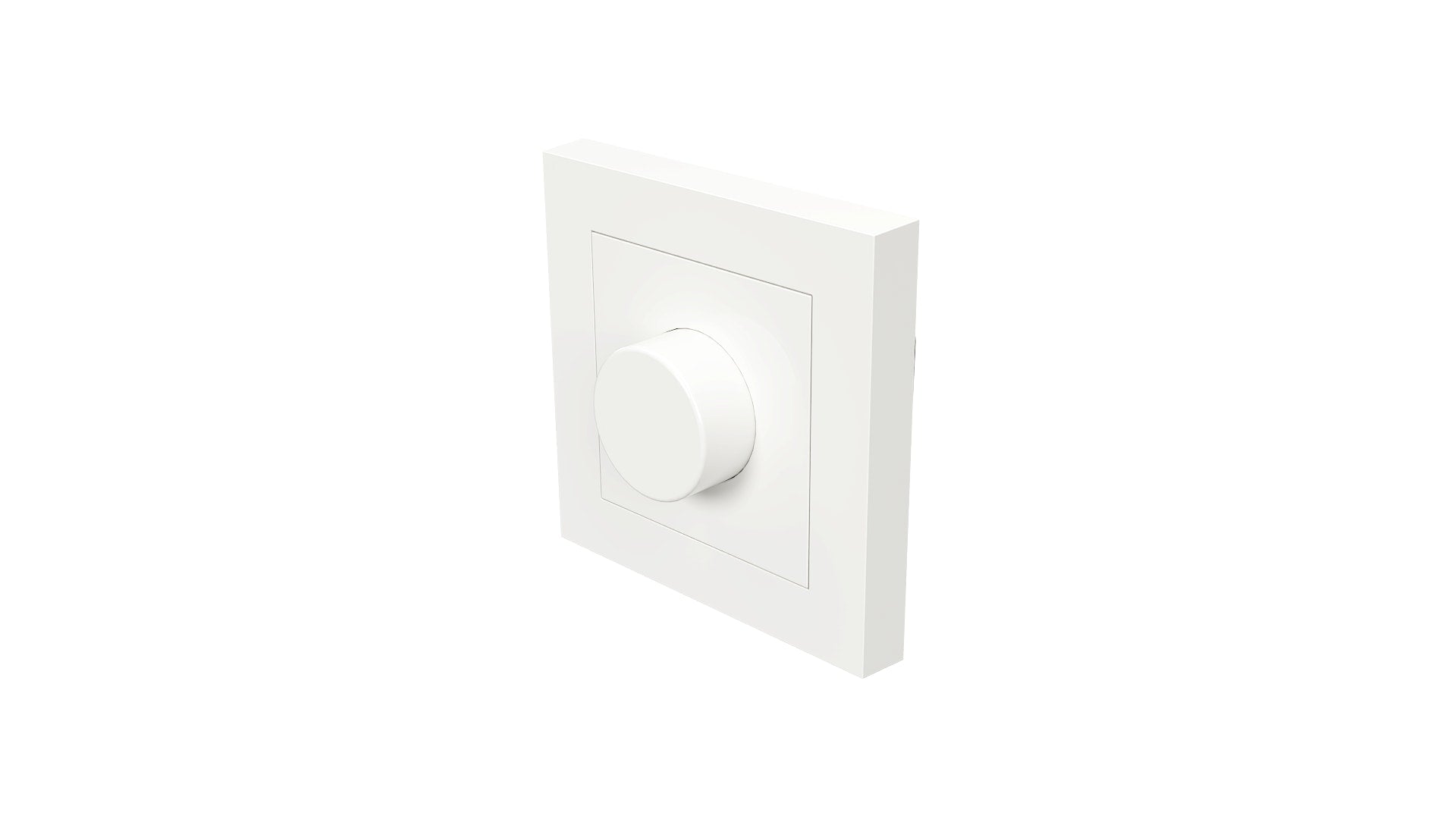

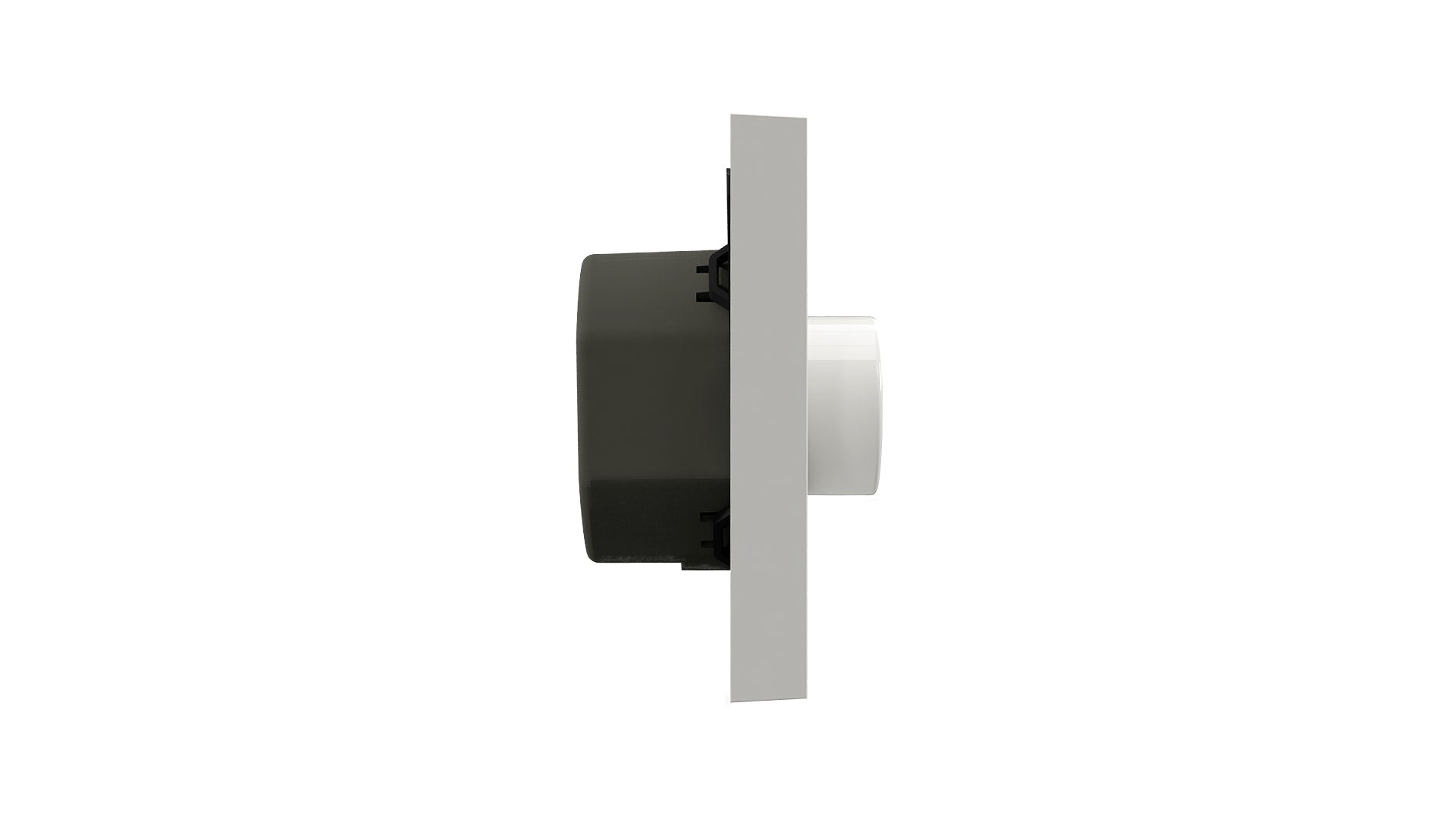

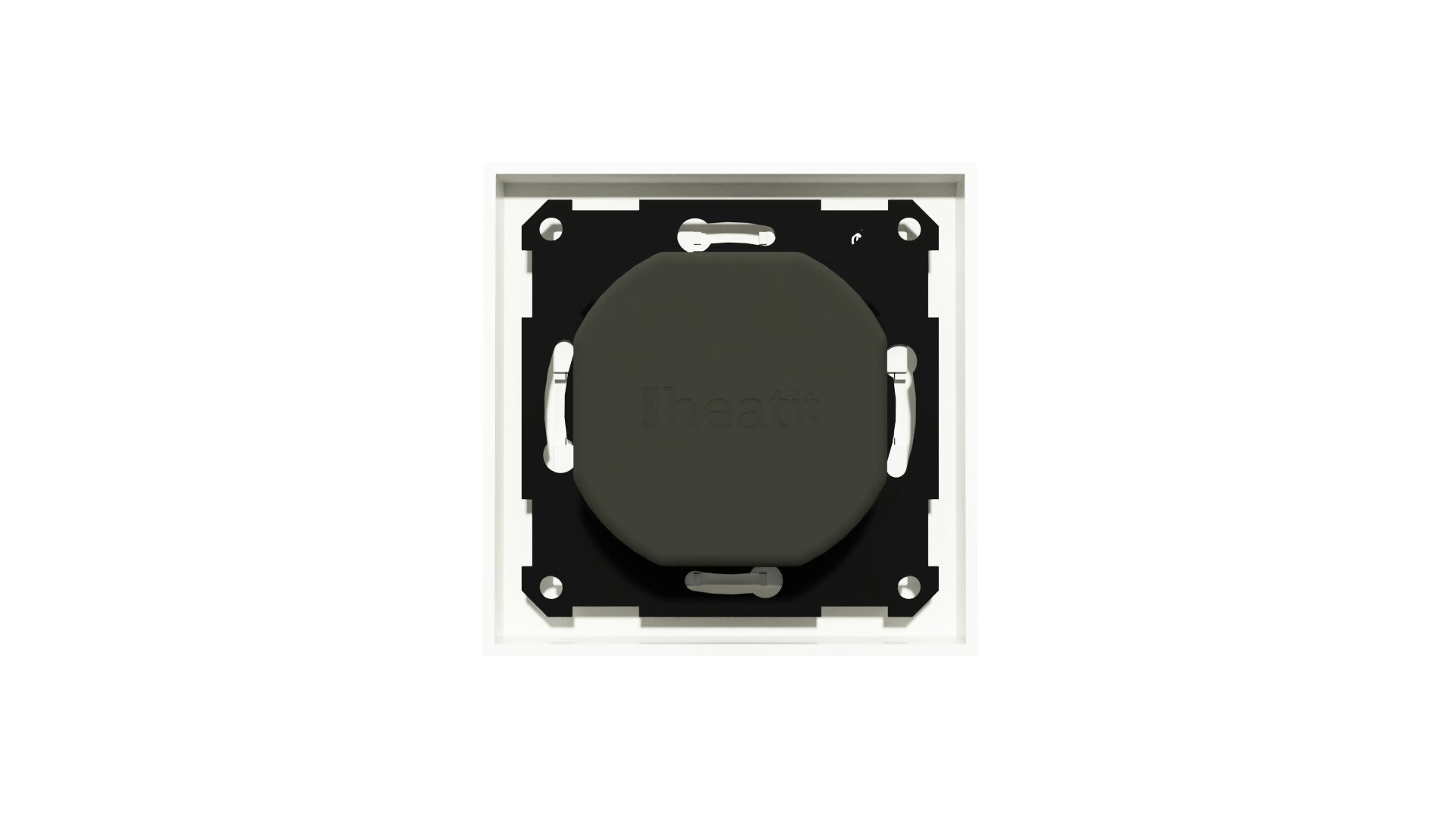

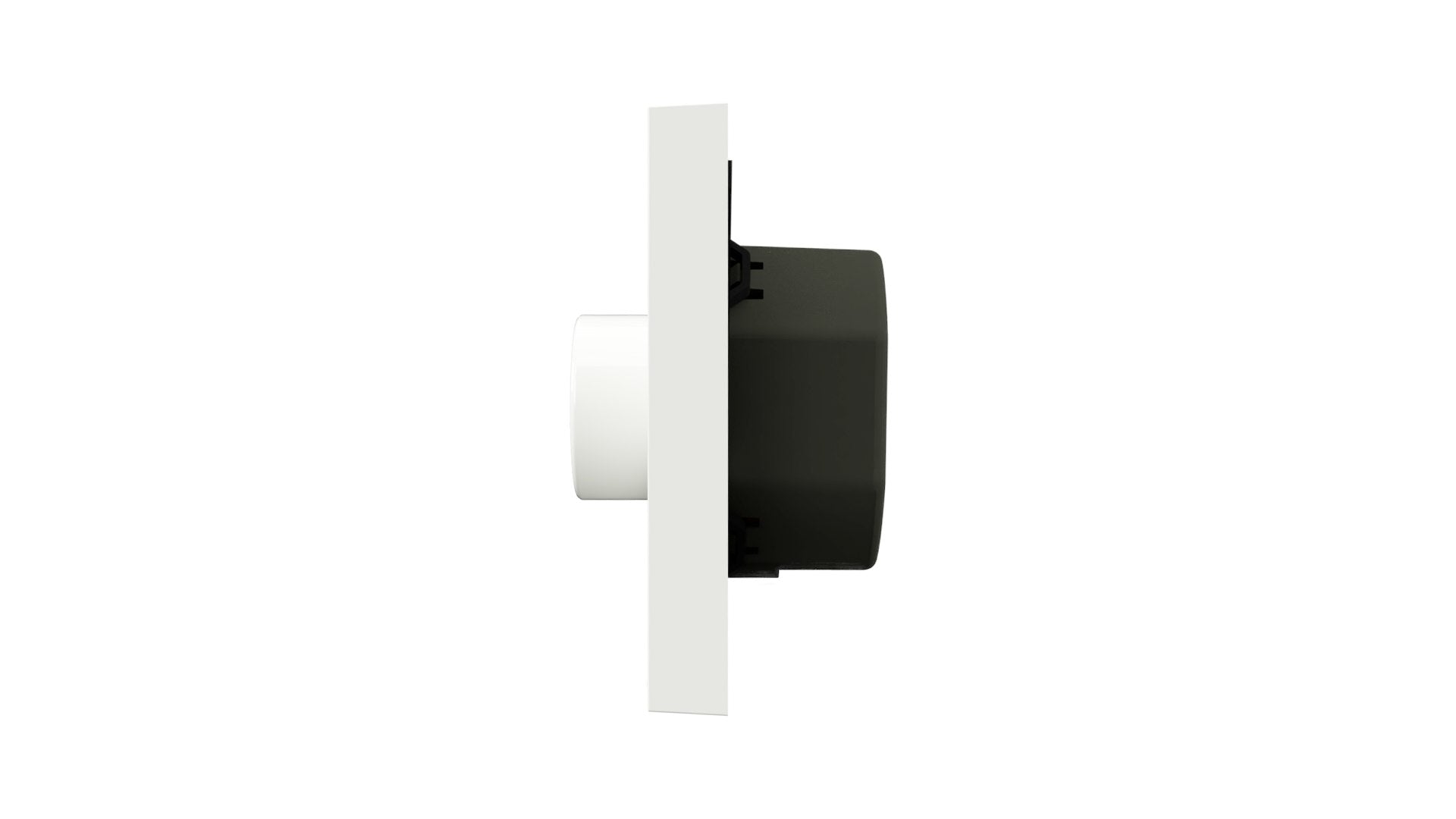

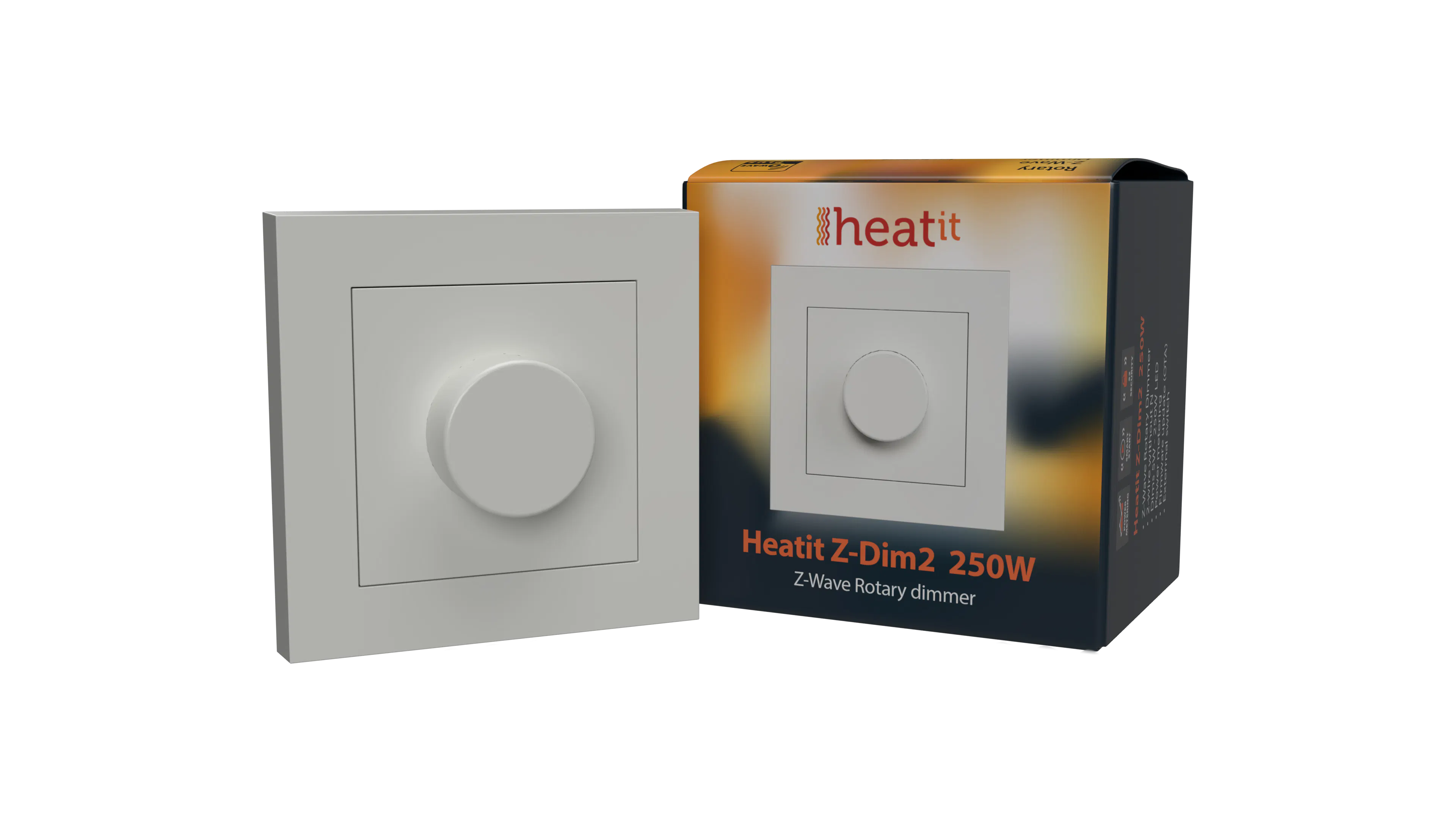

Heatit Z-Dim2 250W

Heatit Z-Dim2 is a Z-Wave rotary dimmer for many different types of light fixtures. The dimmer works on most low loads without causing flickering. Heatit Z-Dim2 is very well suited for LED.

The dimmer is equipped with an external switch option. This allows you to dim and turn on/off the light.

The dimmer fits in an European electrical wall box and can be used with most frames that are adapted to System 55.

Heatit Z-Dim2 has active power metering and it gives you real time information about your power consumption.

Features

• Z-Wave rotary dimmer

• 2-wire

• 5W - 250W LED

• Rotary and push dimming

• Nemko certified

• Active power metering

• SmartStart

• Firmware update (OTA)

• Overload protection

• Short circuit protection

• Surge protection

• Overheat protection

• External switch

• Min. dim level adjustable

• Max. dim level auto-calibration

• Supports encryption mode S0, S2 Authenticated Class, S2 Unauthenticated Class


Technical

• IOT Protocol:Z-Wave - 868.4 MHz (EU)

• Voltage:230V, 230V 50Hz, 230VAC 50Hz

• Max installation temperature (°C):40

• Min installation temperature (°C):5

• Protection grade (IP):IP21

• Certifications:Z-Wave Plus , Z-Wave Plus v2

• Ambient humidity (RH non-condensing %):10-85

• Ambient temperature range in storage (°C):-30-70

• Range ambient temperature (°C):5-40

• Declarations:CE, CE declaration, Z-Wave Plus v2, Nemko, RoHS, Reach

• International standard:Nemko, CE, Z-Wave Plus

• Signal range radio frequency (max no. meters):40

• Depth in mounting box (mm):24

• Max connection dimension (mm²):2,5mm²

• Assembly / mounting location:European Junction Box

• Package size:90x94x70mm

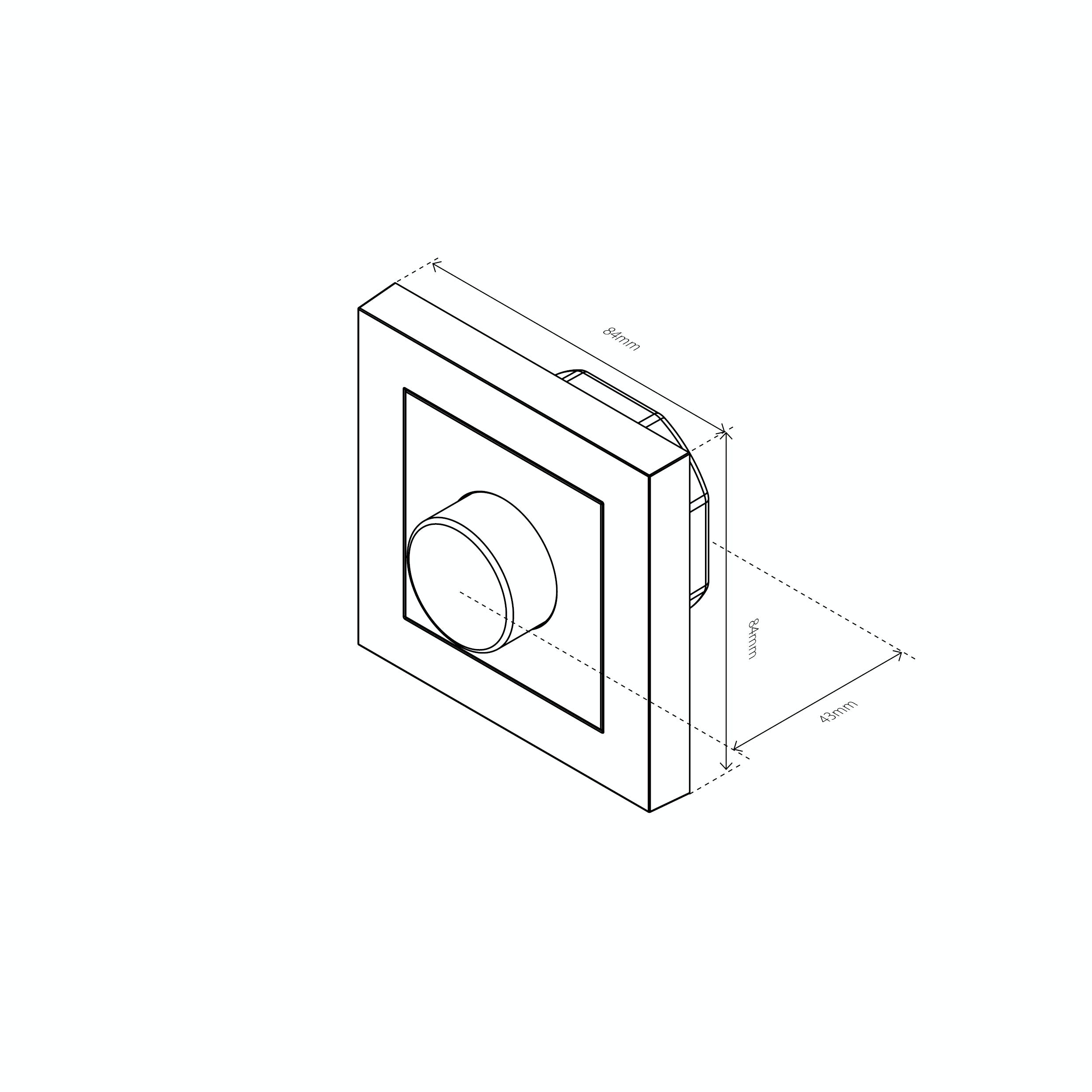

• Product height (mm):84

• Product length (mm):43

• Product weight (gram):79

• Product width (mm):84

• IOT Chip type:Z-Wave 700 chip

• Z-Wave encryption mode:S0, S2 Authenticated Class, S2 Unauthenticated Class


Manuals

Heatit Z-Dim2 250W Manuals
