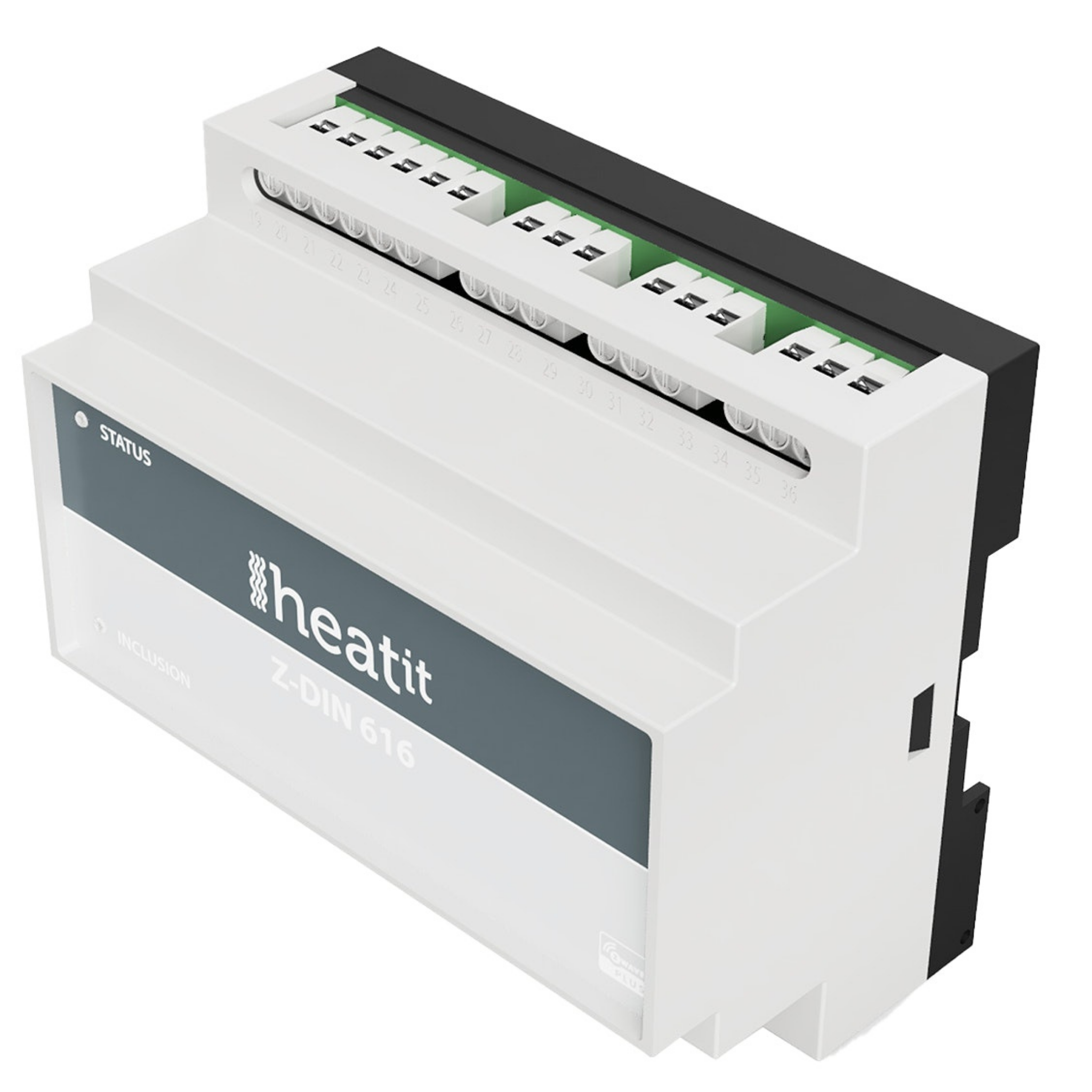

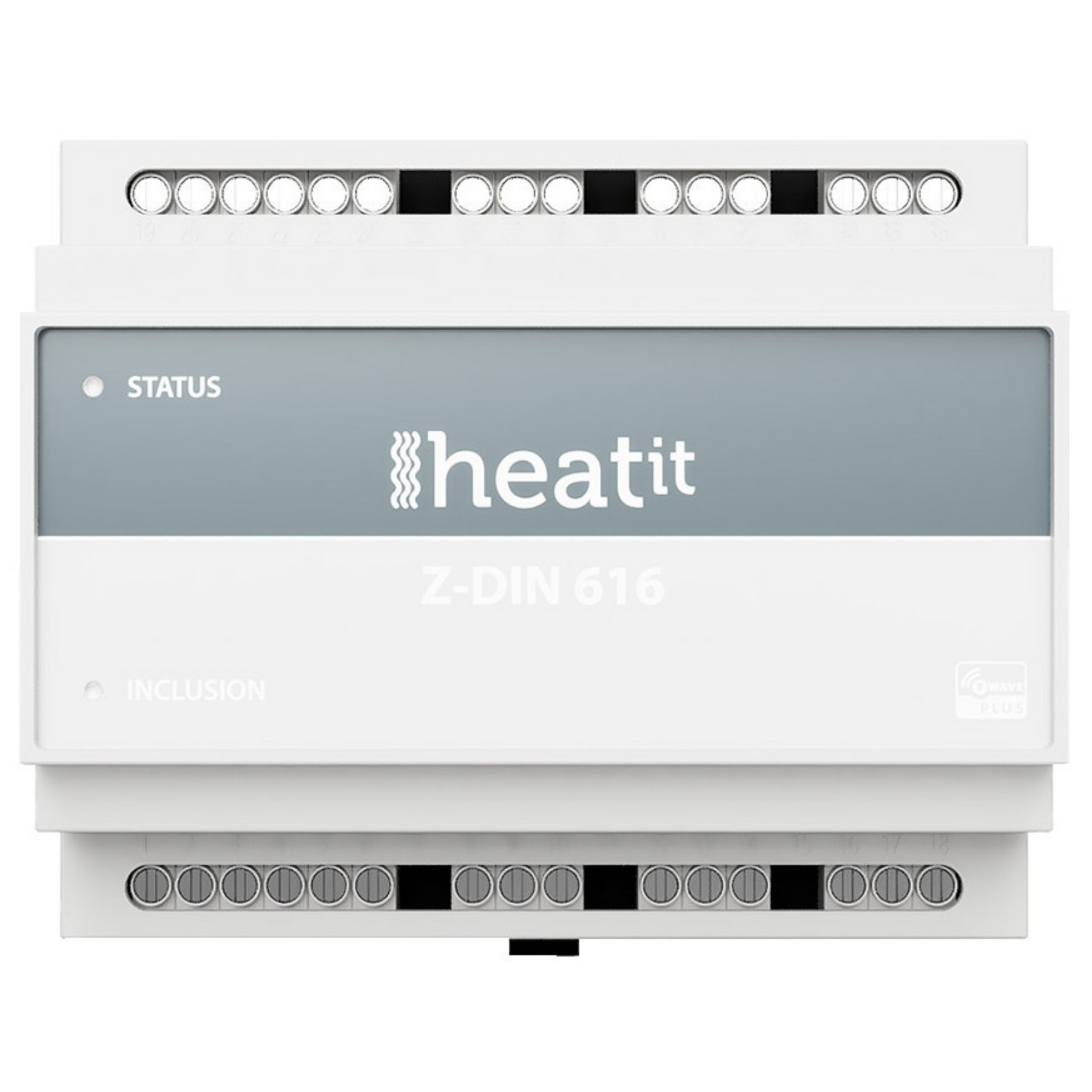

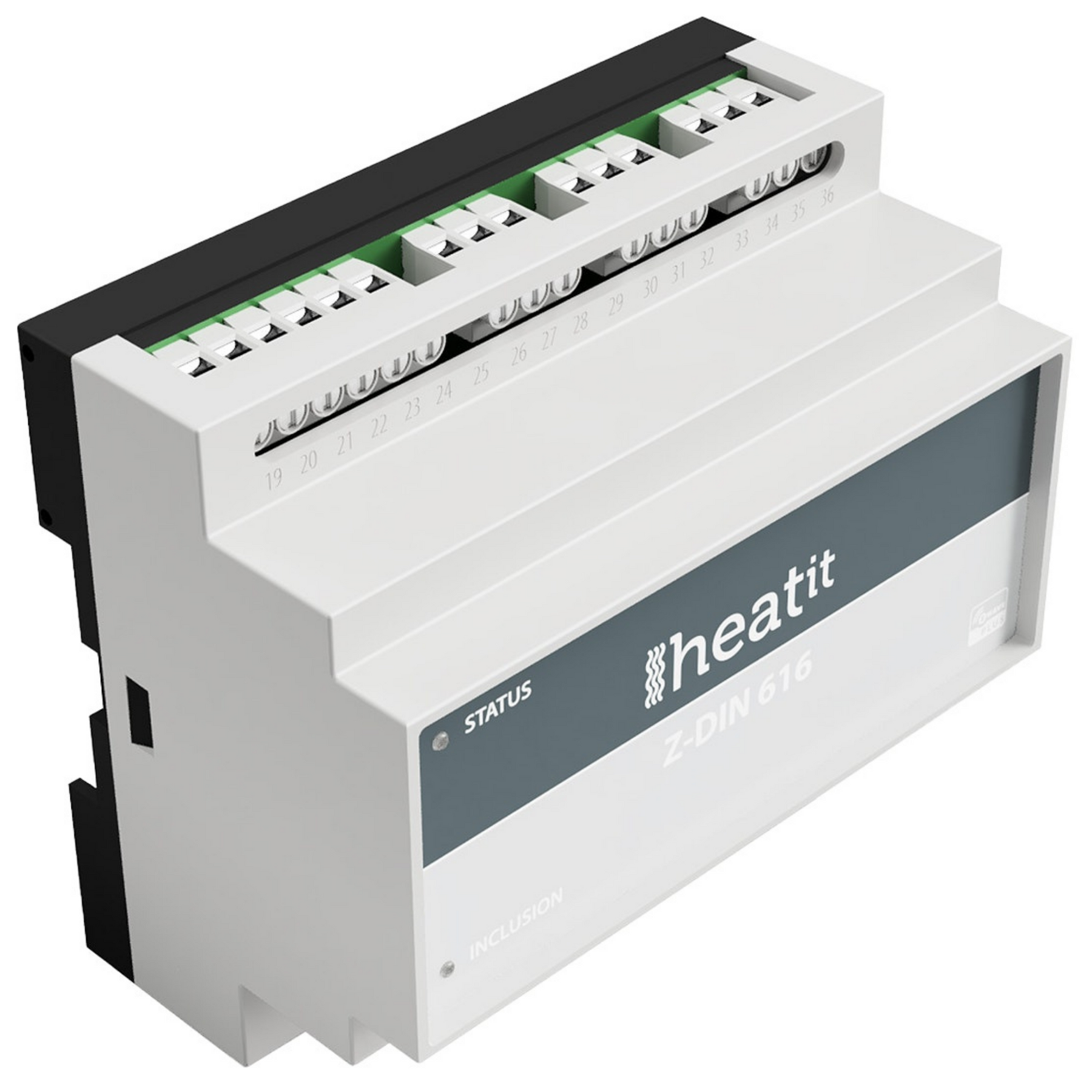

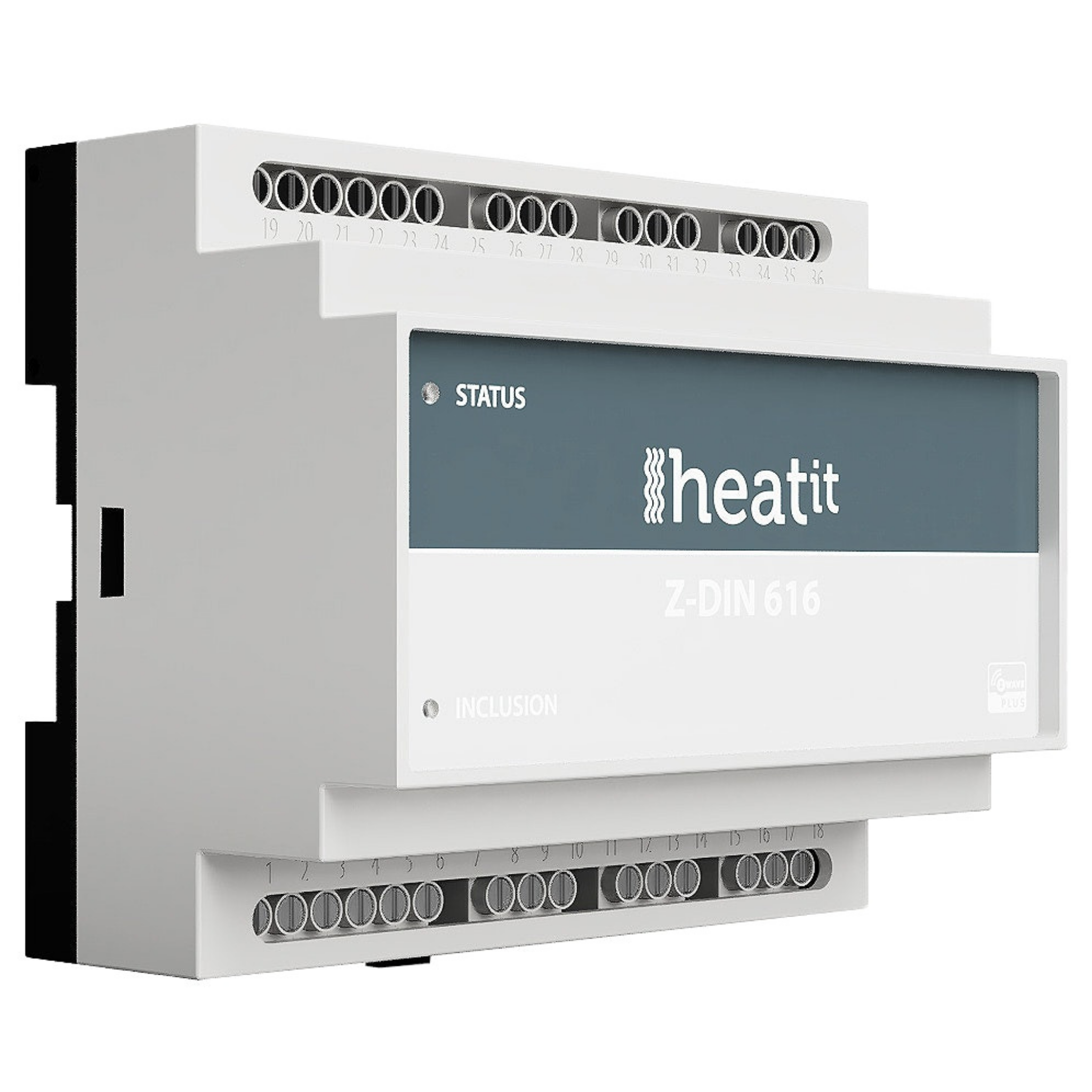

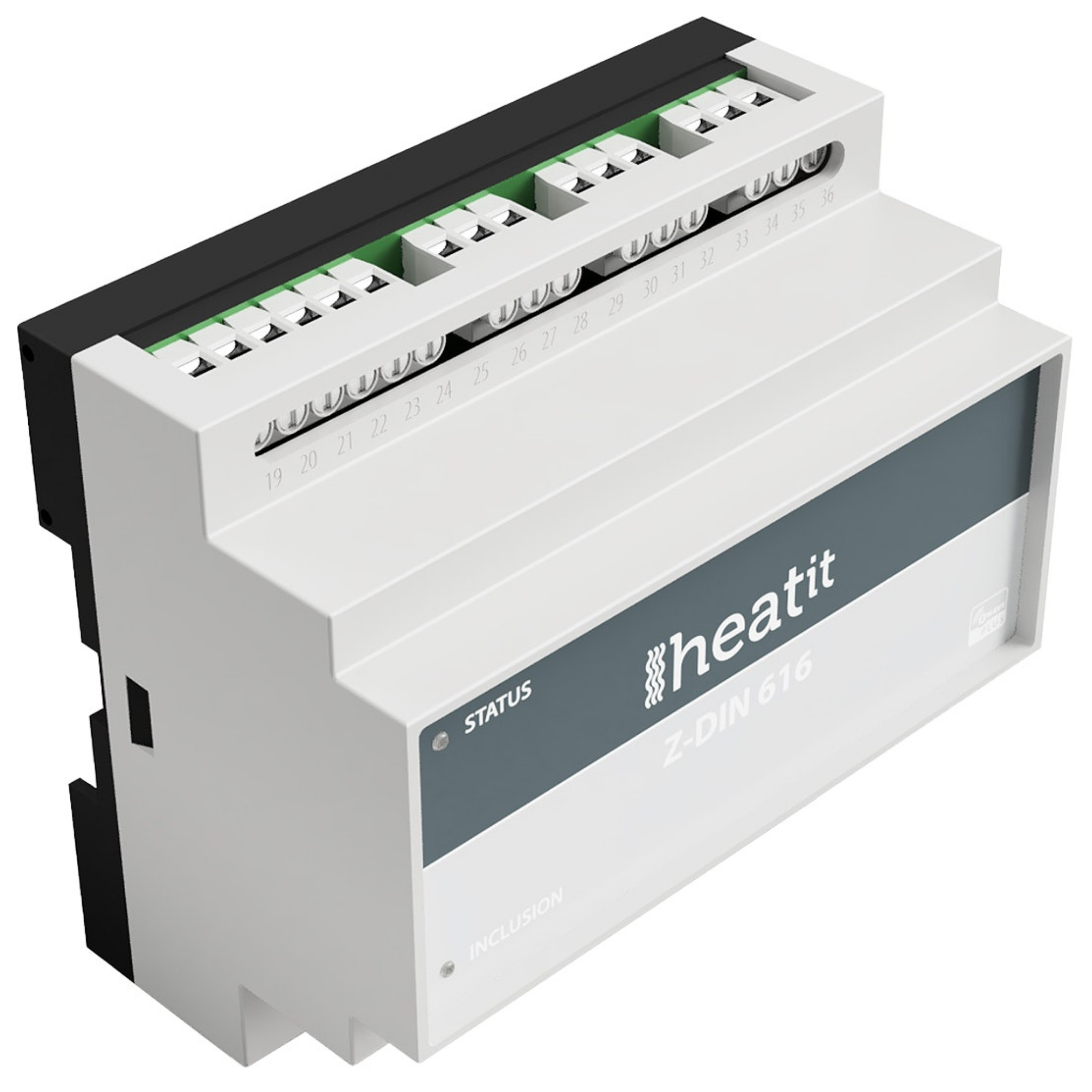

Heatit Z-DIN 616 6x16A Z-Wave relay for DIN rail

Heatit Z-DIN 616 is a 6 x 16A potensial free relay for DIN-rail mounting. The module is equipped with 6 relay switches and 6 digital inputs.

The 6 independent relay switches can be controlled freely through the Z-Wave network and may be used for many different purposes. For example, the 6 digital inputs may be connected to potential-free connectors or open collector outputs, and the inputs allow you to control other Z-Wave devices by sending commands through the Z-Wave network. The Heatit DIN-rail module can be used for connecting 6 230VAC loads freely controllable from the Z-Wave network. All 6 relay outputs are galvanically separated. The 6 inputs of the DIN-rail module allow you to activate predefined scenes in a Z-Wave primary controller.

Features

• DIN-rail module with 6 relay outputs and 6 digital inputs
• Z-Wave interface for other systems in order to control them through the Z-Wave network
• Mounted on DIN-rail in switchboard
• Potential free circuit control
• 6 x 16A potential free relays
• 2-pole switch solution when using 2 x relays combined
• Firmware update (OTA)
• Supports encryption mode S0, S2 Authenticated Class, S2 Unauthenticated Class

Technical

• IOT Protocol:Z-Wave - 868.4 MHz (EU)
• Voltage:24V
• Max load (Watt - resistive load):40
• Max current (Ampere):80
• Own power usage (watt):0.6
• Max installation temperature (°C):40
• Min installation temperature (°C):5
• Min. working temperature (°C):5
• Protection grade (IP):IP 21
• Total gross effect (W):3600
• Input connections:6 x 1-polet belastning (potensialfri 5mm avstand), maks 10V DC
• International standard:RoHS 2011/65/EU, EMC 2014/30/EU, EN 50491-3:2009, EN 60669-2: 2004, LVD 2014/35/EU, RoHS 2011/65/EU
• Signal range radio frequency (max no. meters):40
• Max connection dimension (mm²):2,5mm²
• Max ambient humidity (%RH):80% RF
• Max temperature without load (°C):40
• Max temperature with load (°C):40
• Assembly / mounting location:DIN Rail
• Outputs:AC15: 360VA , AC1: 16A 250V AC , AC3: 750W (motor), AC15: 360VA

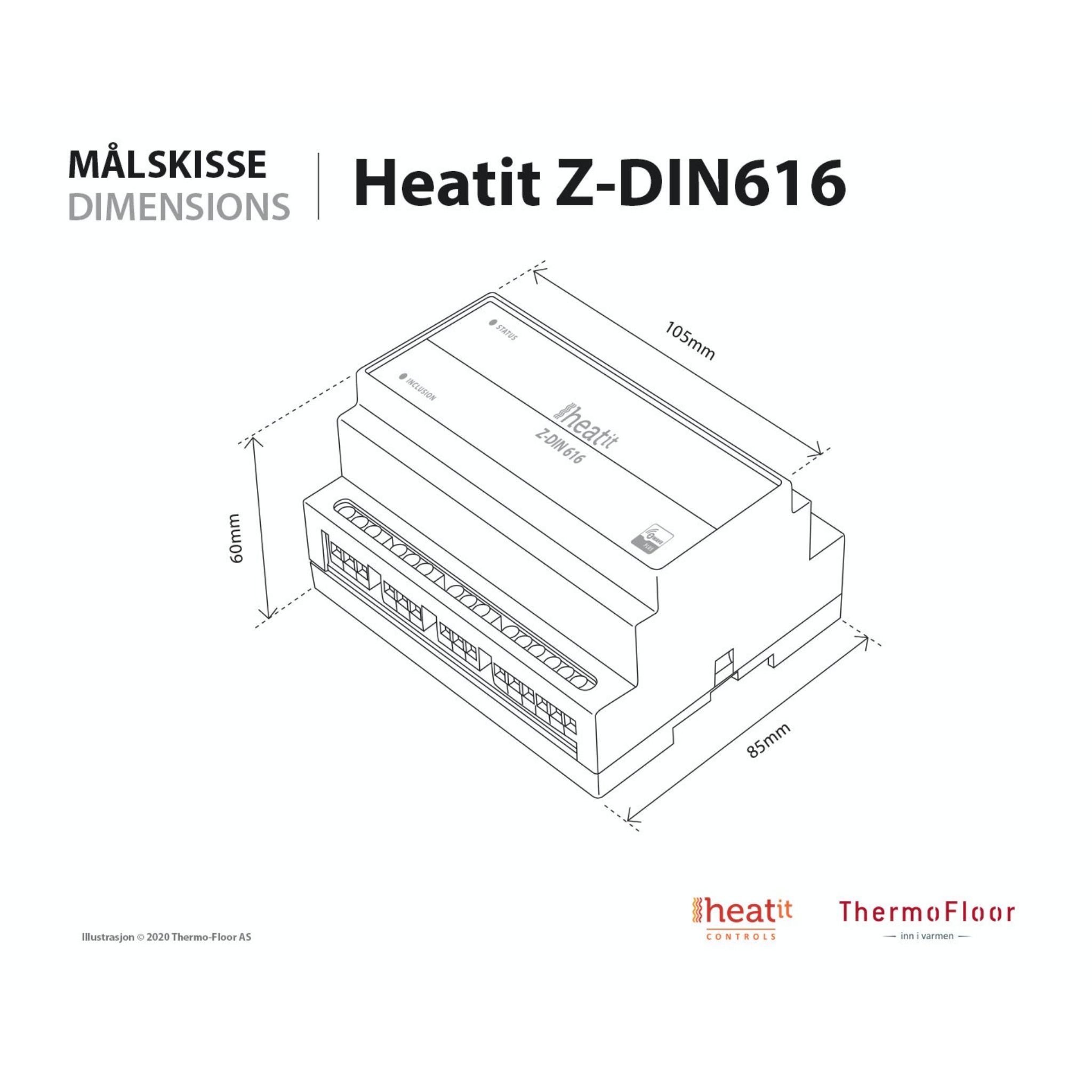

• Product height (mm):60
• Product length (mm):85
• Product weight (gram):239
• Product width (mm):105
• IOT Chip type:Z-Wave 500 chip
• Z-Wave encryption mode:S2 Unauthenticated Class, S2 Authenticated Class, S2 Unauthenticated Class

Manuals

Heatit Z-Din Z-Wave Relay Manual
