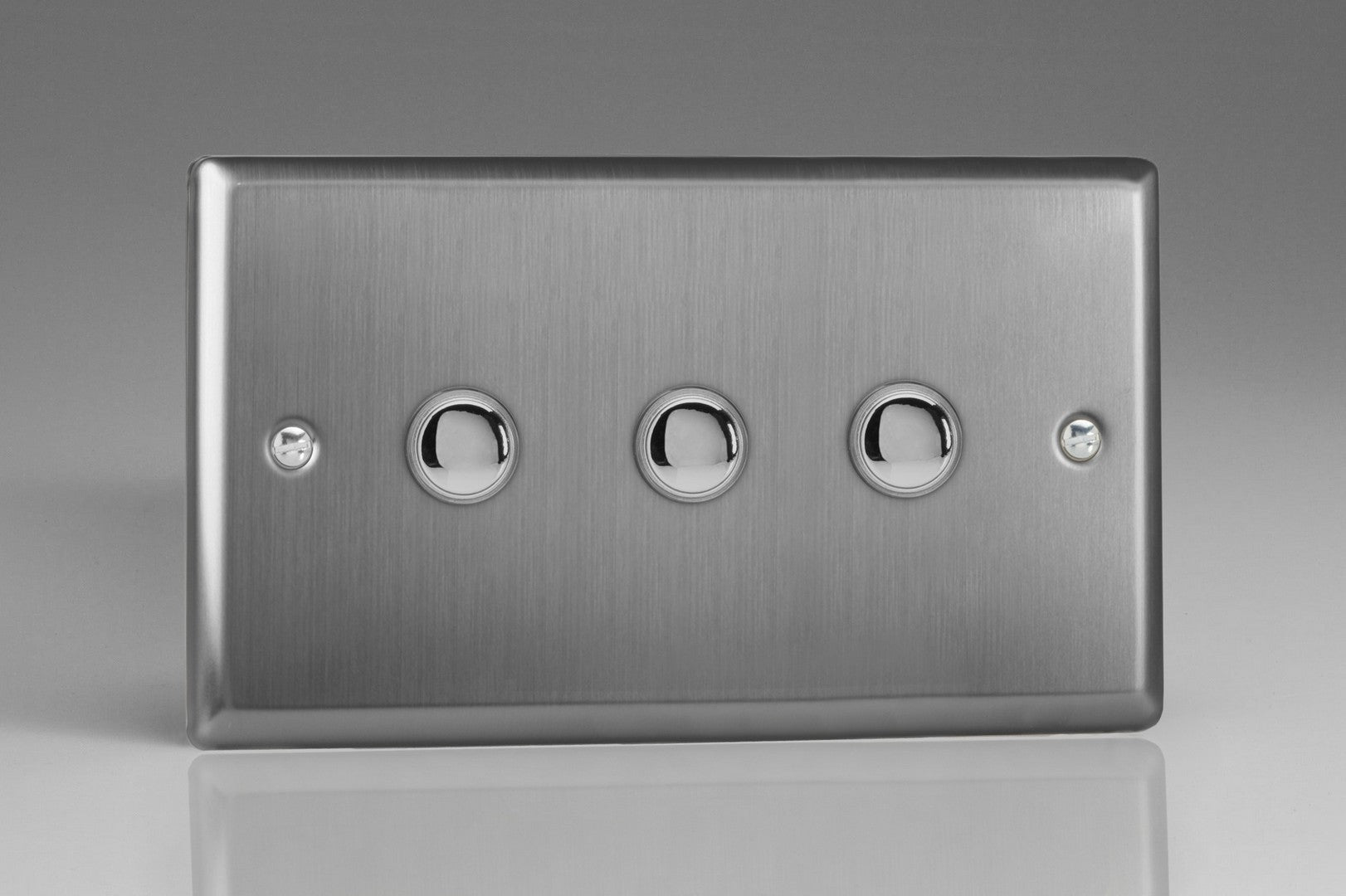

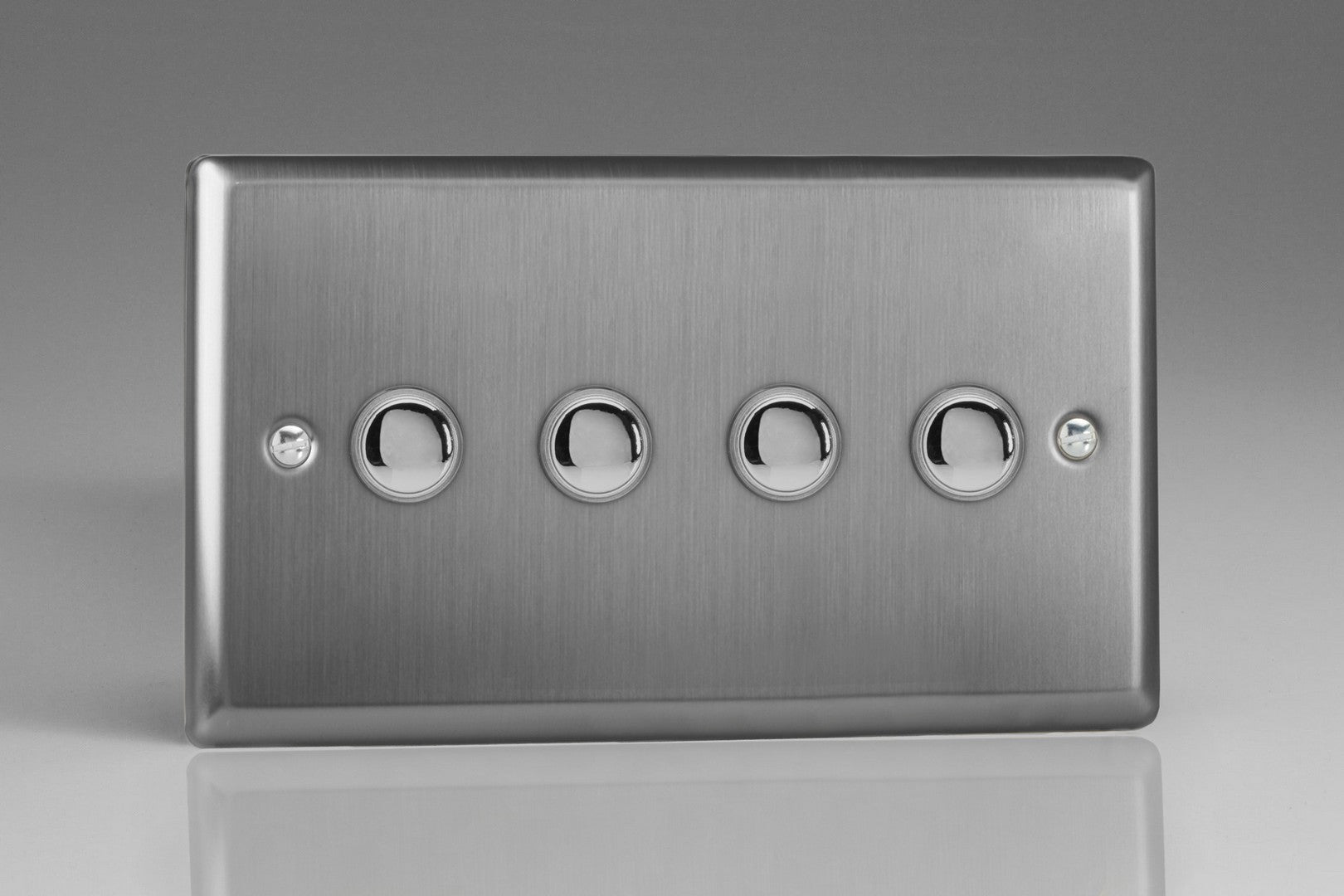

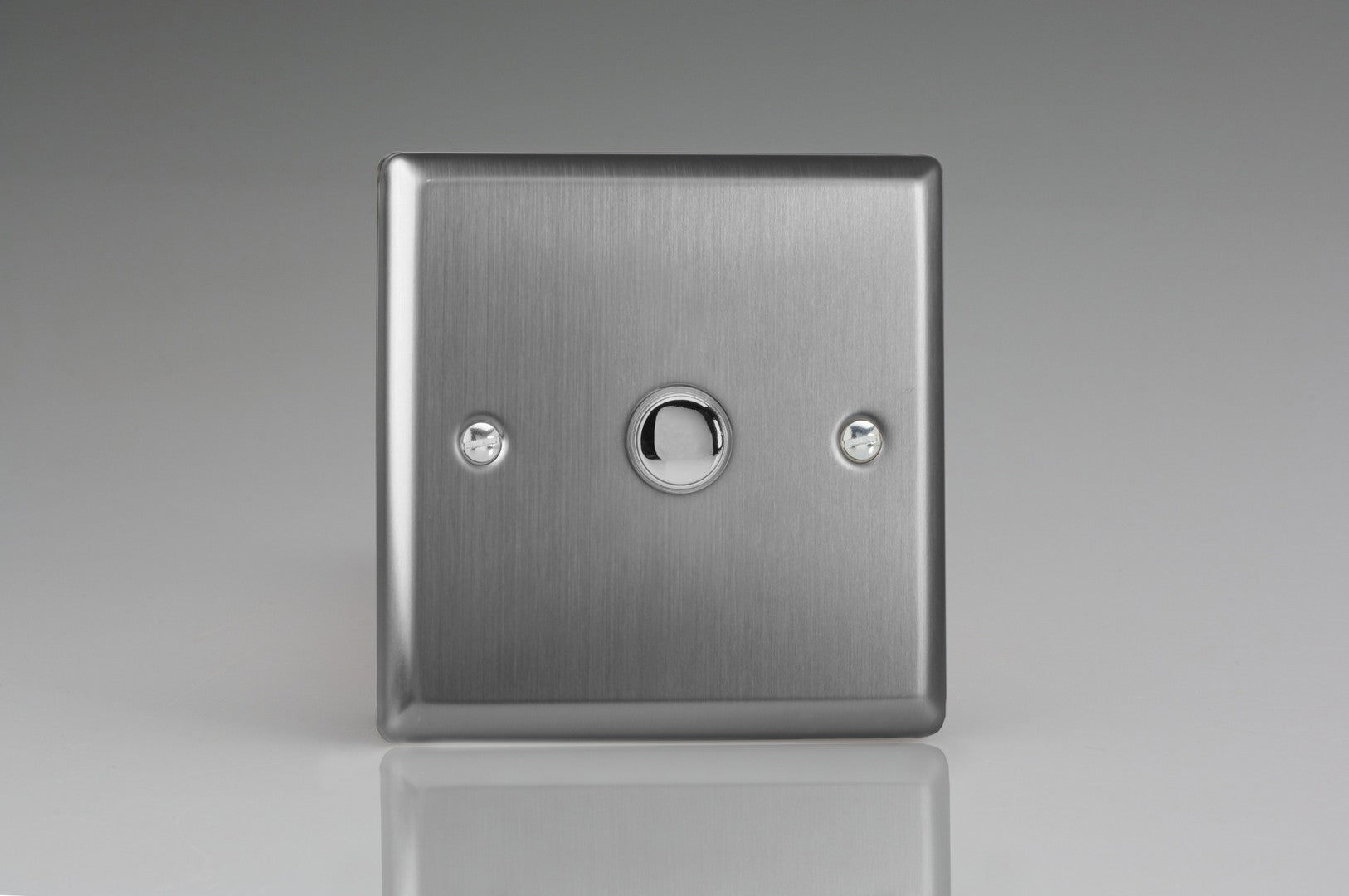

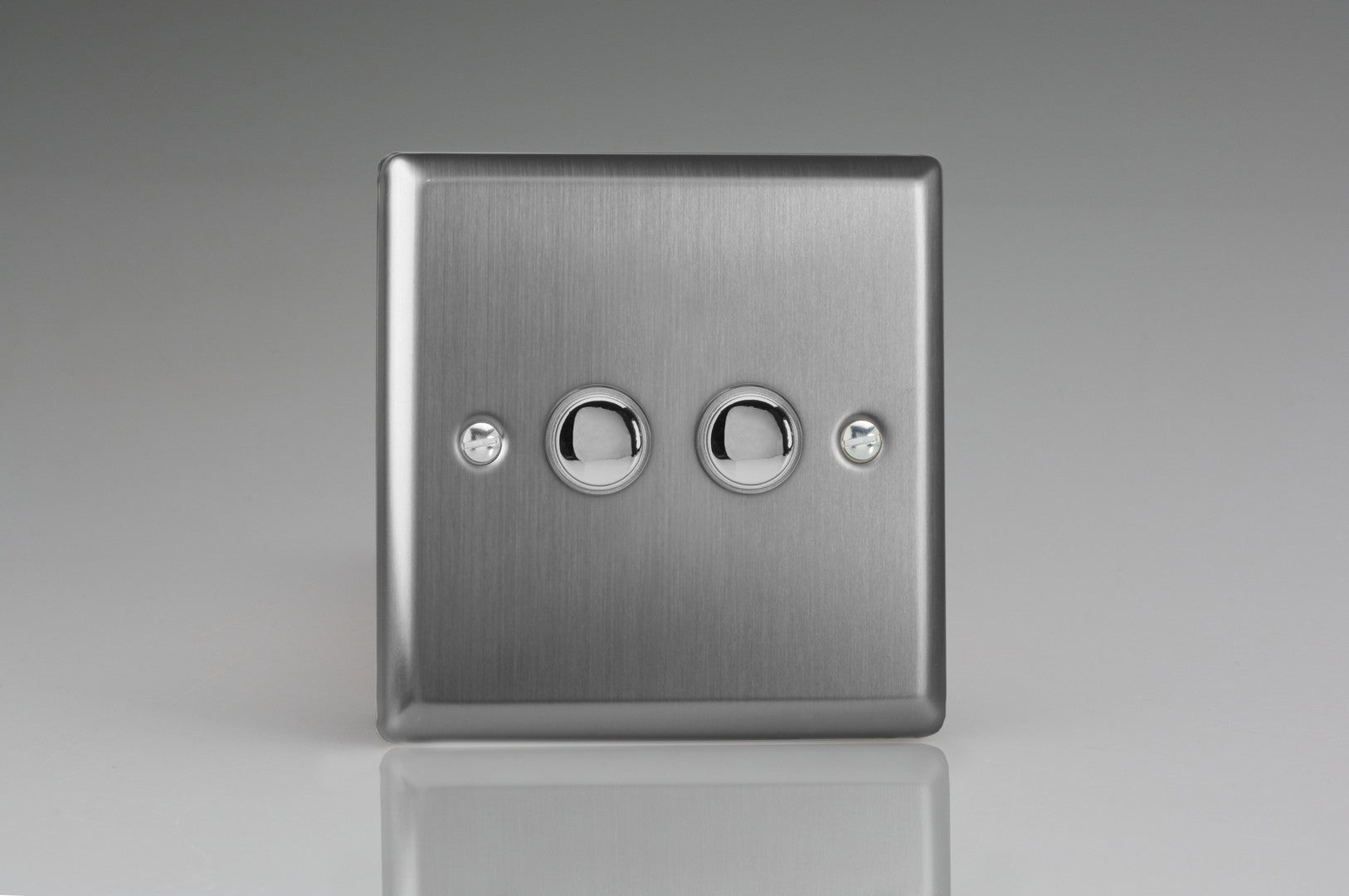

Push-to-Make Momentary Switch - Brushed Steel

VARILIGHT's momentary push-to-make switches are perfect for use with dimmer and relay modules from FIBARO, Nice, Qubino, Shelly, Aeotec, Frient, etc

When wired with a module the switches will allow you to press for on, press for off and with dimmers press & hold to increase or decrease brightness of the lighting.

They can also be used with with blind controller modules, bells and applications where a momentary electric signal is required.

VARILIGHT Classic Collection

The Classic range is a contemporary take on a raised profile faceplate. The bevel-edge design is a timeless style, which will pair beautifully with any interior. Each plate is expertly manufactured in the UK to the highest standard.

Brushed Steel Finish

Stunning Brushed Steel continues to be a popular finish with interior designers and all those wanting accessories with timeless appeal. VARILIGHT decorative wiring accessories are British made and covered by the VARILIGHT lifetime guarantee.

Dimensions:  1 &2-Gang 91x91x23mm, 3 & 4-Gang 91x150x23mm

Faceplate Depth: 8mm

Net Weight: 1-Gang 106g, 2-Gang 126g, 3-Gang 189g, 4-Gang g

Gross Weight: 1-Gang 108g, 2-Gang 128g, 3-Gang 192g, 4-Gang g

Fixing Centres: 1 &2-Gang 60.3mm, 3 & 4-Gang 120.6mm

Depth from Mounting Face: 11.5mm

Recommended Back Box Depth: 16mm

Operating Voltage: 230v 50Hz

Maximum Load Rating: 6A

Maximum Current Rating: 6A

Terminal (Live) Diameter: 3mm; Capacity: 3 x 1.5mm²

Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²

Intended Applications: Indoor Use Only. Domestic power supply.

Safety Advice: Product Must Be Earthed.

Applicable Safety Standard: BS EN 61058-1
