Shelly Qubino Z-Wave Wave Pro 2

Description

PLEASE NOTE: All Shelly products are currently operating on a 5-7 working day dispatch time.

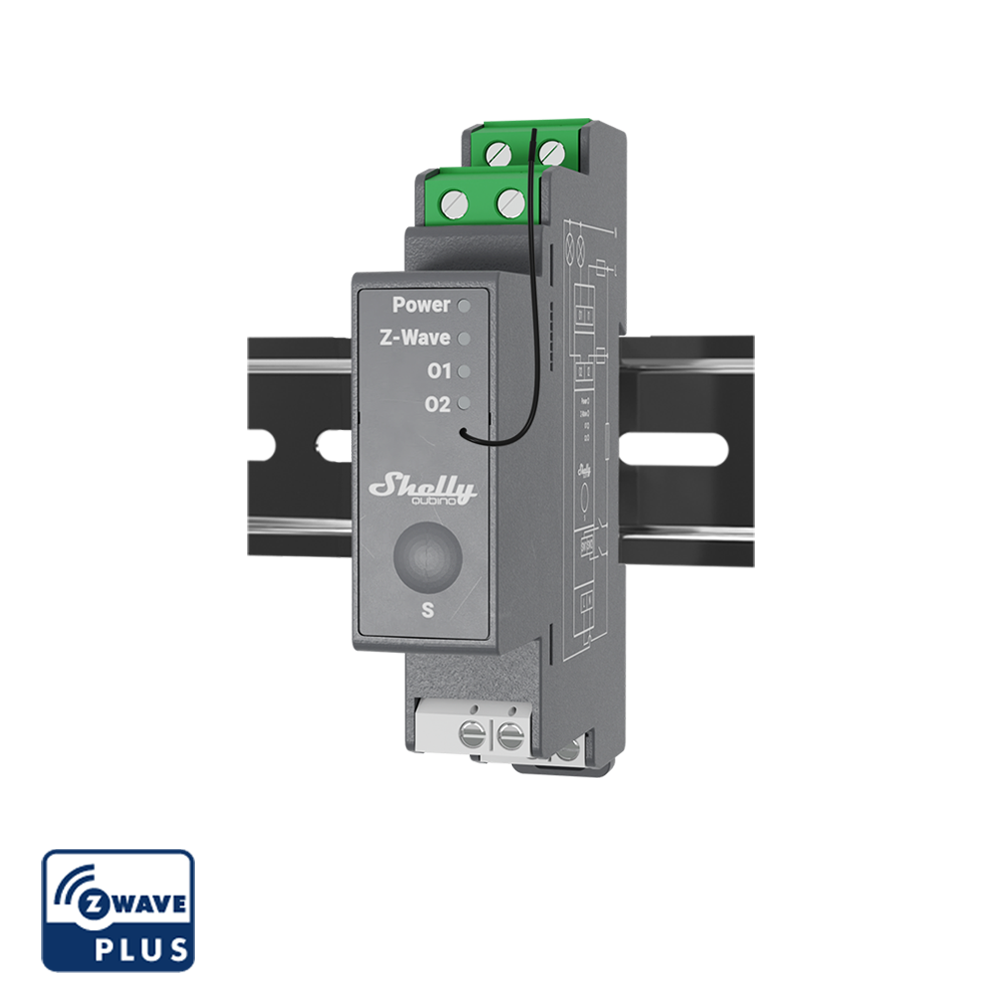

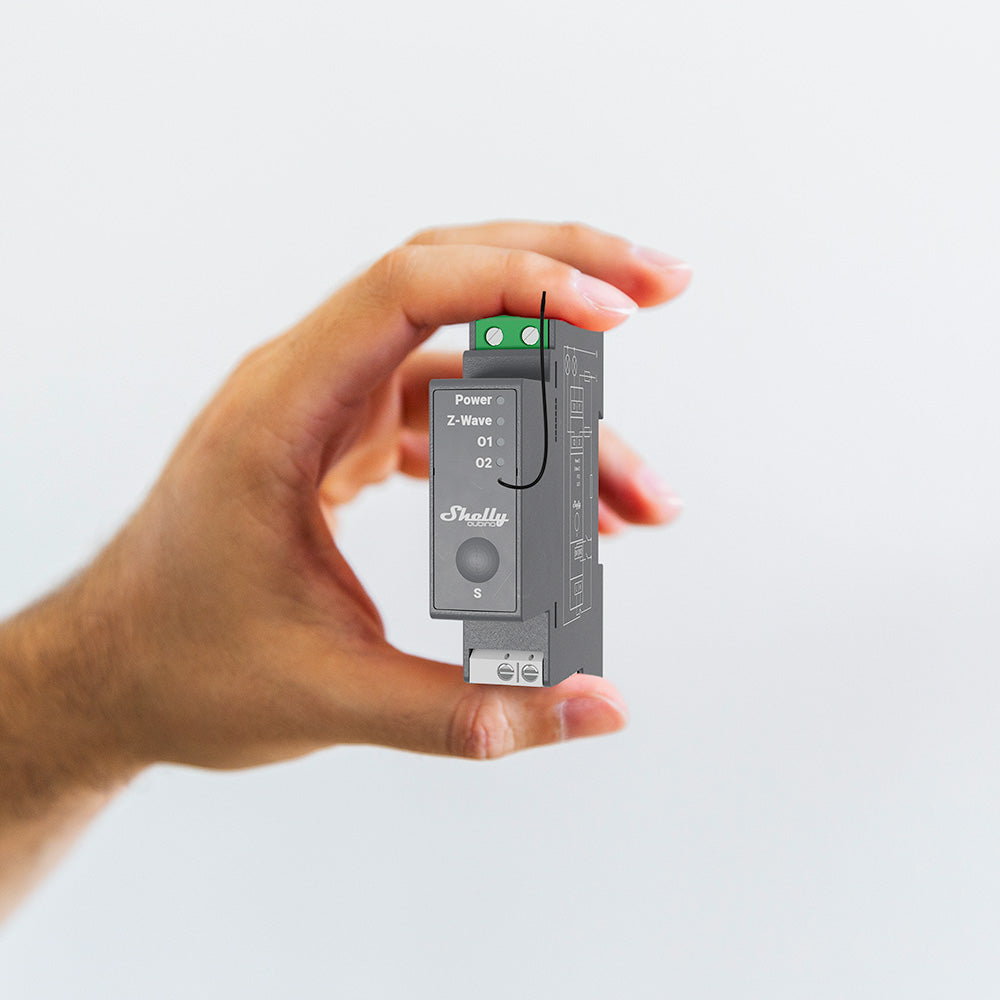

Professional 2-channel DIN rail Z-Wave® smart switch.
Suitable for home and facility automation with remote control. DIN-rail mountable inside a breaker box. Enhanced safety features.​

The best solution for new home buildings and business facilities.​​
Wave Pro 2 is a one-phase, 2-channel relay, supporting up to 16 A per channel with a total device capacity of 25 A.  Different types of actions, scenarios, and schedules can be set to sync your environment to your daily activities or business needs. ​

Shelly Qubino works on Z-Wave.
By using Z-Wave, smart home products can seamlessly communicate with each other, regardless of their brand or platform, thanks to a centralized smart hub! Shelly Qubino devices work on the latest Z-Wave chip generation (S800), one of the most popular standardized technologies for smart homes in the world.

2 outputs, 16 A each​​​.
Wave Pro 2 has a total device output of 25 A. ​

Associations.
Establish direct communication between devices in your Z-Wave local network and set actions with no hub present! ​

The highest level of security.
Include the device as Security 2 Authenticated for encrypted communication and utmost safety of your Z-Wave network.

Use Cases.

Dynamic lights control for improved efficiency​​.
Automate your lights and optimize their energy consumption through smart schedules, scenes, actions, etc. Wave Pro 2 allows you to automate the lights on each floor separately and set custom schedules for each of them. Set all lights in the office to switch off when everyone has left the premises and never worry about wasting energy during non-working hours.​

Smart conference room ​.
Automate the conference rooms so that they are fully ready for your business meetings. Establish a local (direct) communication between Z-Wave devices within your network and execute actions without Z-Wave gateway. The motion sensor* will trigger the Wave Pro 2 to turn on the lights and the projector, so the conference room is instantly ready for your presentation!​

Features

• Power supply: 110-240 V AC, 50/60 Hz

• Power consumption: < 0.3 W

• Power measurement (W): No

• Max. switching current: 16 A per channel, 25 A total

• Overheating protection: Yes

• Distance: Up to 40 m indoors (131 ft.) (depends on local condition)

• Z-Wave repeater: Yes

• CPU: Z-Wave™ S800

• Z-Wave frequency bands: 868,4 MHz

• Mounting: DIN rail

• Conductor cross section: 0.5 to 2.5 mm² / 20 to 14 AWG (green connectors)

• Conductor cross section: 0.5 to 1.5 mm²/ 20 to 16 AWG (white connectors)

• Ambient temperature: -20°C to 40°C / -5°F to 105°F
• Humidity: 30 % to 70 % RH

Manuals

Click here for the Shelly Qubino Z-Wave Wave Pro 2 manual
